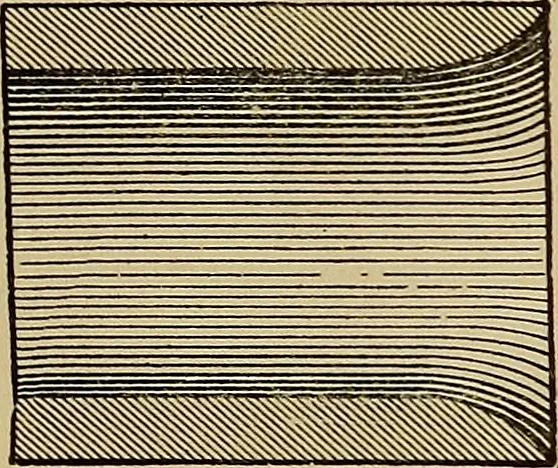

Fig. 150. Fig. 151. increasing the space as the center line is ap-proached, and decreasing the space on the lowerhalf, while increasing the width of the line. Inshading a concave surface, as in Fig. 151, the oper-ation is reversed. Spherical, and other classes ofsurfaces may be represented by this…
