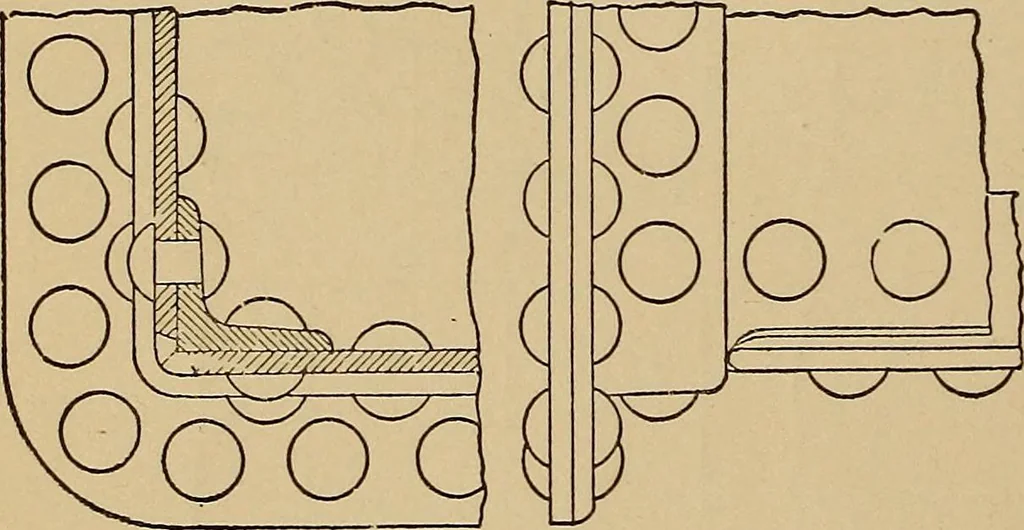

at right angles to one another by meansof angle irons. Fig. 159 is a plan and elevation 80 MECHANICAL DRAWING of the comer of a wroiiglit-iron tank. The sidesof the tank are riveted to a vertical angle iron, thecross section of which is clearly shown in theplan. Another angle iron of the same… … Fig. 159—Corner of Wrought-iron Tank. At this point the vertical plates meet one another,and the edge formed is rounded over to fit the in-terior of the bend of the horizontal angle iron soas to make the joint tight. Draw this examplehalf size. The dimensions are as follows: angle irons 2%inches X…
