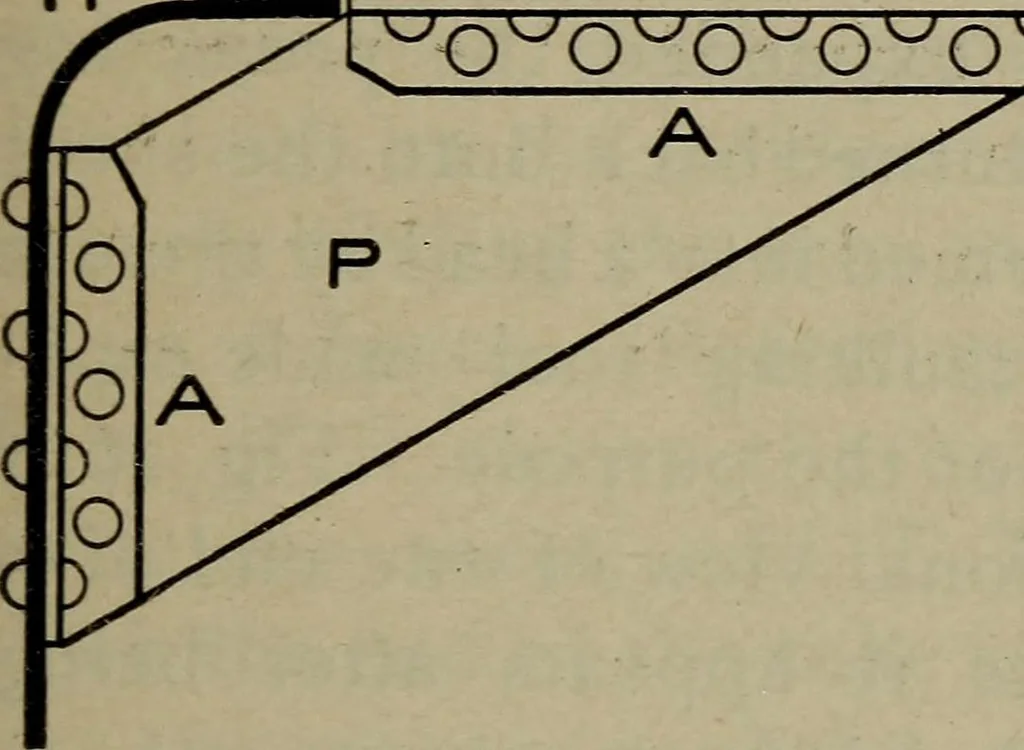

and the other end connected to that portion ofthe head that needs bracing. The flues serve to brace the flue sheet and all of thatportion of the front head to which they are connected.Sometimes gusset stays are used for staying the heads.A gusset stay is a triangular piece of boiler plate P,Fig.…
