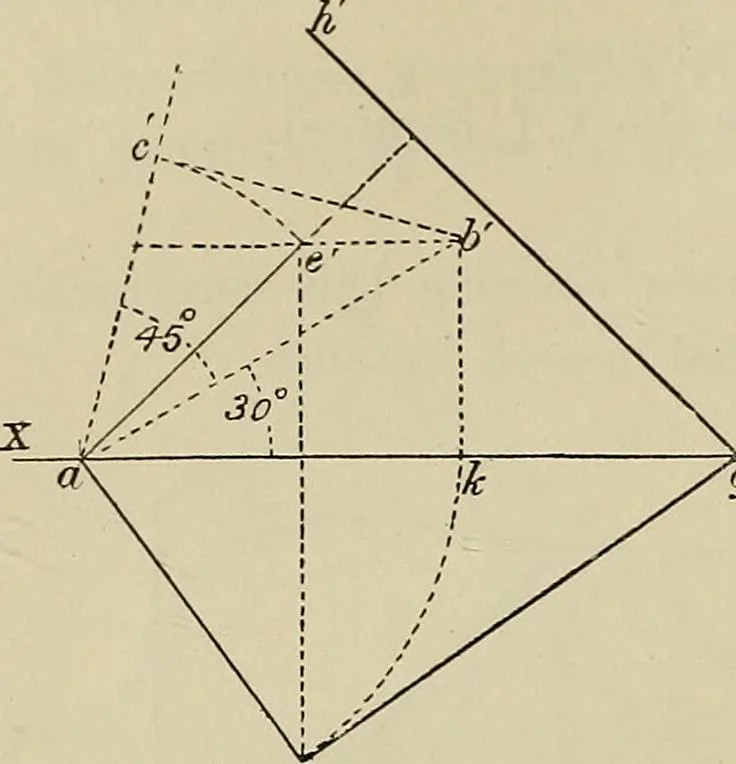

Note.—The angles in this problem are the same as those 304 SOLID GEOMETRY CHAP. XXIII … Fio;. 112. given in tlie preceding one, so that a comparison can be madebetween them. The angles that a line perpendicular to the plane will makewith each plane of projection must first be determined. The plane is to form anangle of 60° with the H.P., soa line perpendicular to it willform an angle…
