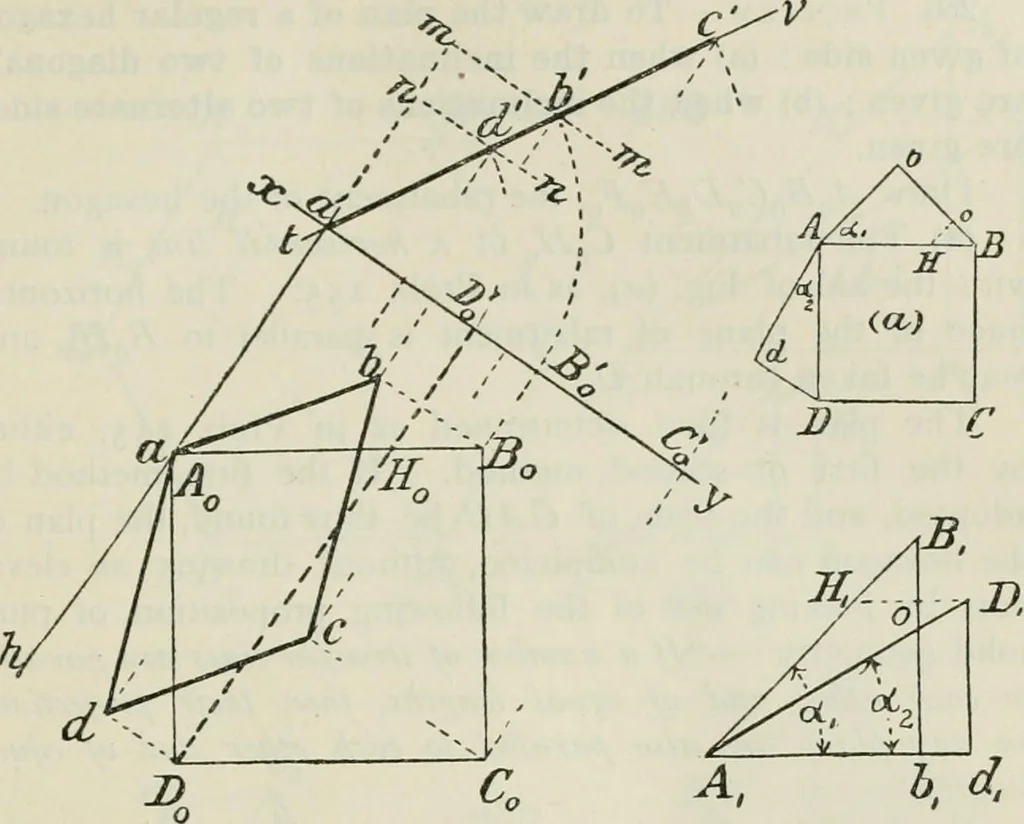

ans of AB, AD, describe arcs intersectingthe lines dawn through B0, DQ, perpendicular to th, in band d respectively ; join ab, ad, and draw dc, be parallel toab, ad. Then abed is the required plan of the square.B0b, D0d are the plans of the circular paths of B and Dtraced during the rabatment.… … arcs through B^,D^ (projected from fi0, D{), intersecting thehorizontal lines mm, nn in // and d respectively. Then //, dare the elevations of B, D, a is the elevation of A, and a,d, b will lie in one straight line, which is the edge eleva-tion of the plane of the square. The arc CQc determinesc ;…
