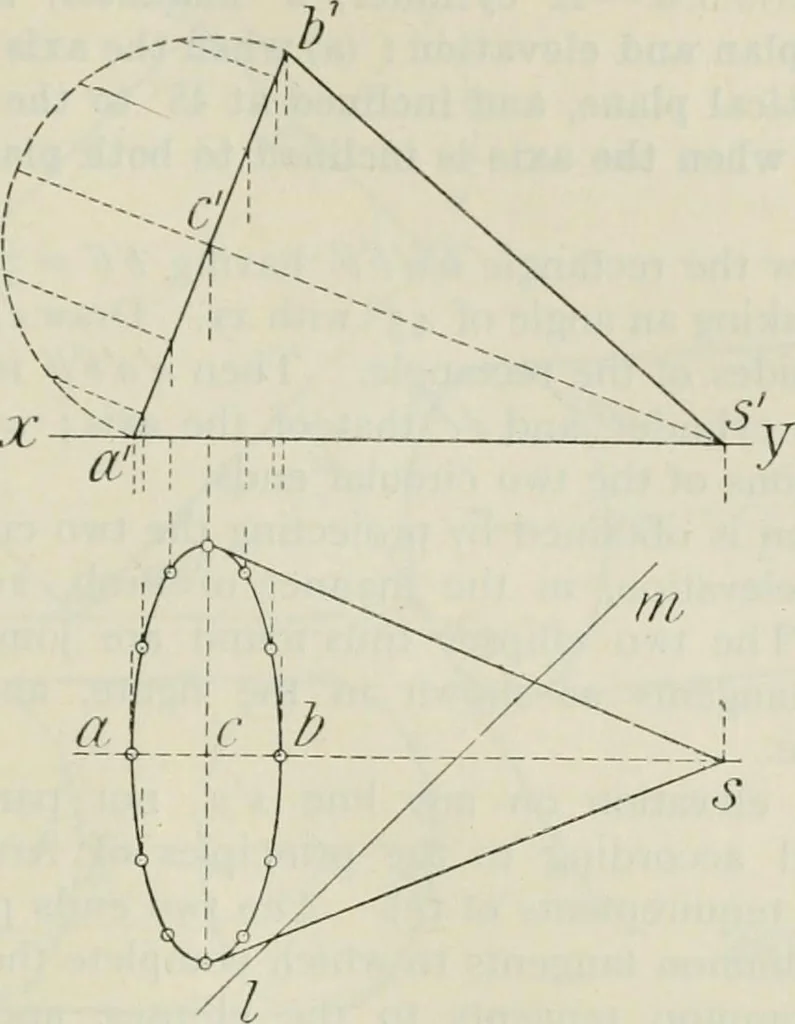

ion from the plan. The drawing of this view is left as an exercise for thestudent. Examples.—1. A cone, 2 base, 3 axis, rests with a generator onthe ground; draw its plan, and a sectional elevation on a verticalplane which bisects the plan of the axis at 450. 2. Draw the plan and elevation of a… … Examples on Problems 270 to 272. 1. A cylinder, i}/ diameter, 2 long, has a cone 2f base, i^ axis, placed centrally on one of its ends. Draw the plan ofthe solid when the bases of both cone and cylinder touchthe ground. Draw a sectional plan on a plane which con-tains the vertex and two points on…
