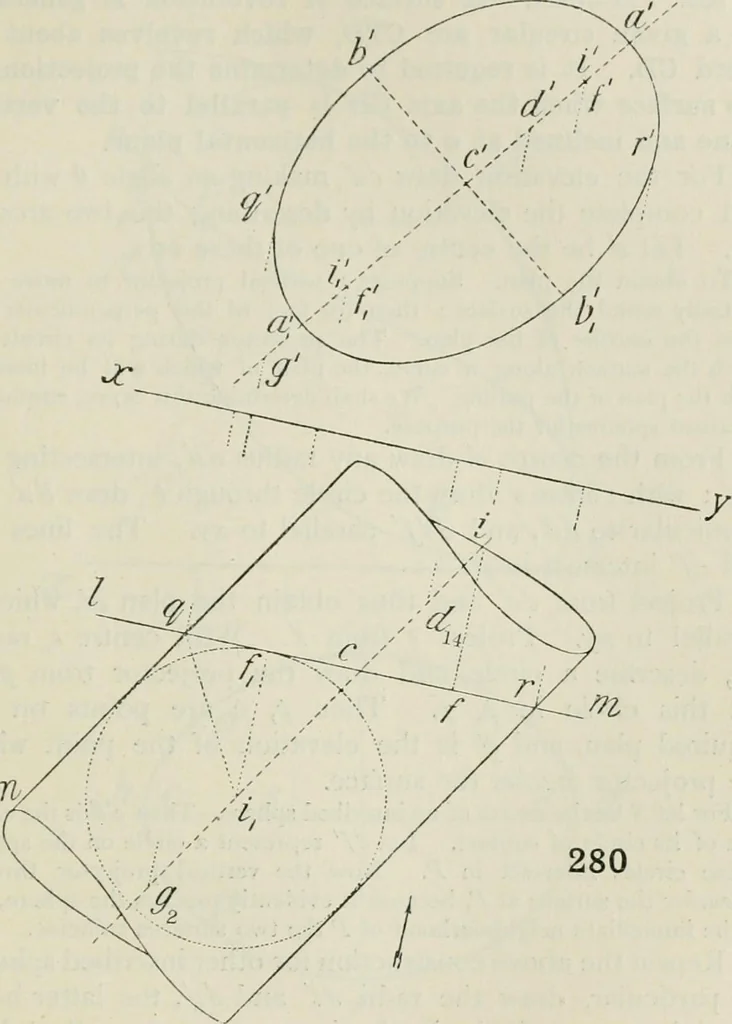

fthe axis of the solid. In illustration, refer to the figure on page 337. Theaxis CD of the surface of revolution is parallel to thevertical plane, and the elevation consists of two circulararcs, having cd as a common chord. The plan of thesurface might be determined thus : First draw a series of… … The method of clr wing the plan which is adopted inthe next problem is fuller and more instructive. The curveHPRG on the surface which projects into the outline inplan is determined, and a number of points in the plan areobtained. This gives more definiteness than would be thecase if the method of…
