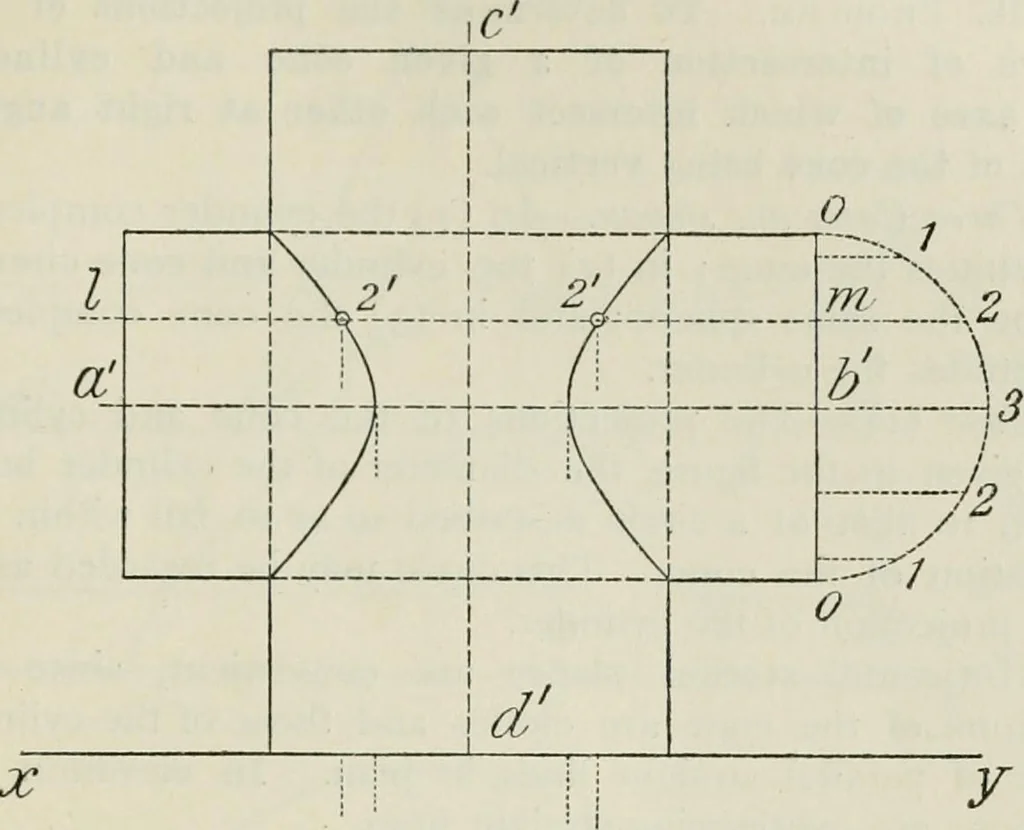

sider the section plane whose elevation //;/ passesthrough 2. Set off l>2, 1)2 in plan, each equal to m.2 inelevation, and through the points 2 thus obtained drawlines parallel to ab. These lines form the plan of the sectionof the horizontal cylinder, while that of the vertical cylinderis the…
