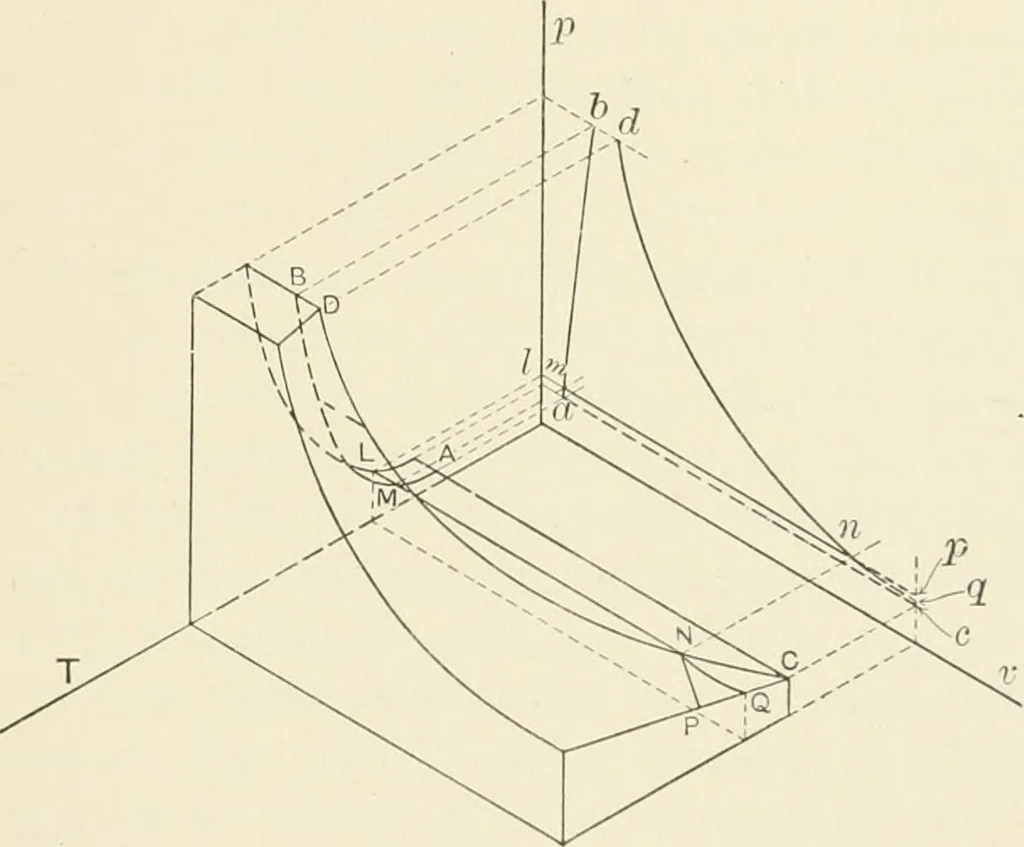

ondition of thevapor from the superheated condition. Exercise 156. Plot, by means of the steam tables, the satura-tion and the liquid lines for water on the pv-p\a.ne.Plot the same lines on the pt-p\ane. INTRODUCTION 153 Section XXVI THE CHARACTERISTIC SURFACE OF VAPORS In order to illustrate the… … Ilc;. 38. does not represent any particular vapor nor is it drawnto scale. The portion of the characteristic surface between theliquid line AB and the saturation line CD is cylindrical.Its elements are parallel to the z>-axis. This illustrates thecondition noted above, that at constant pressure…
