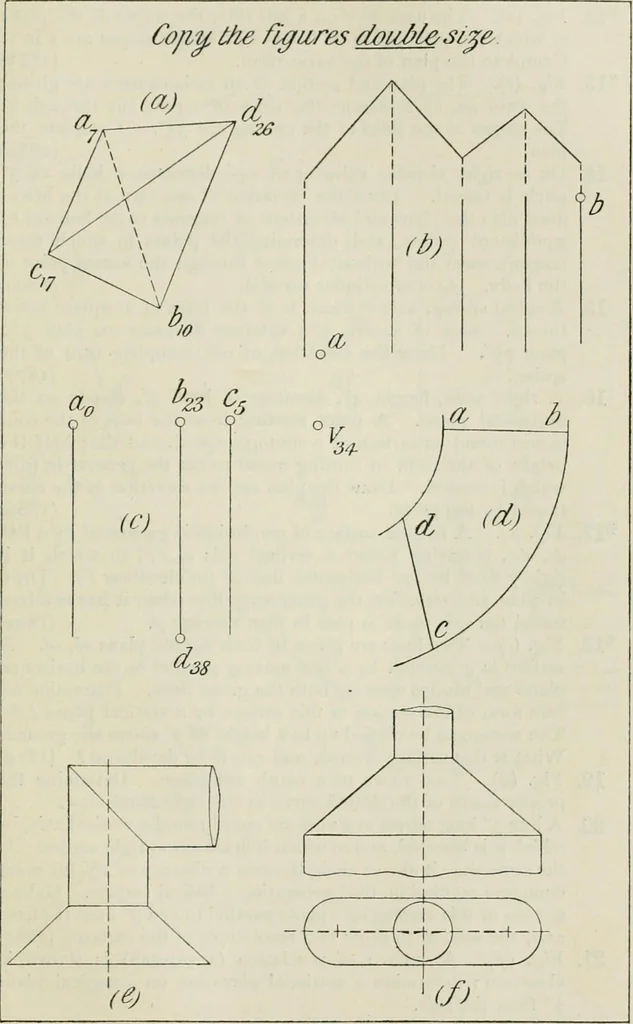

igure four times the size shown. 11. Draw a rectangle abed (ab = cd — 3^; be = da=i^); ah and cdare the plans of the diagonals of two opposite faces of a cube ;be and da are the plans of two edges. Complete the plan of thecube. (1880) 12. Two equal right cones, height i|, diameter of base 2-3,… … 484 PRACTICAL SOLID GEOMETRY chap. *12. Fig. (a). The area abed on a hill side, the traces of the planeof which are given, is to be levelled ; the side slopes are I in 1.Complete the plan of the excavation. (1885) *13. Fig. (/»). The plan and section of an embankment are given ;the lines aa, bb…
