Practical problems in mechanical drawing and blueprint reading (1921)
Sturtevant, Walter W. [from old catalog] · Minneapolis, Minn. : Practical problems co. · leaf 55

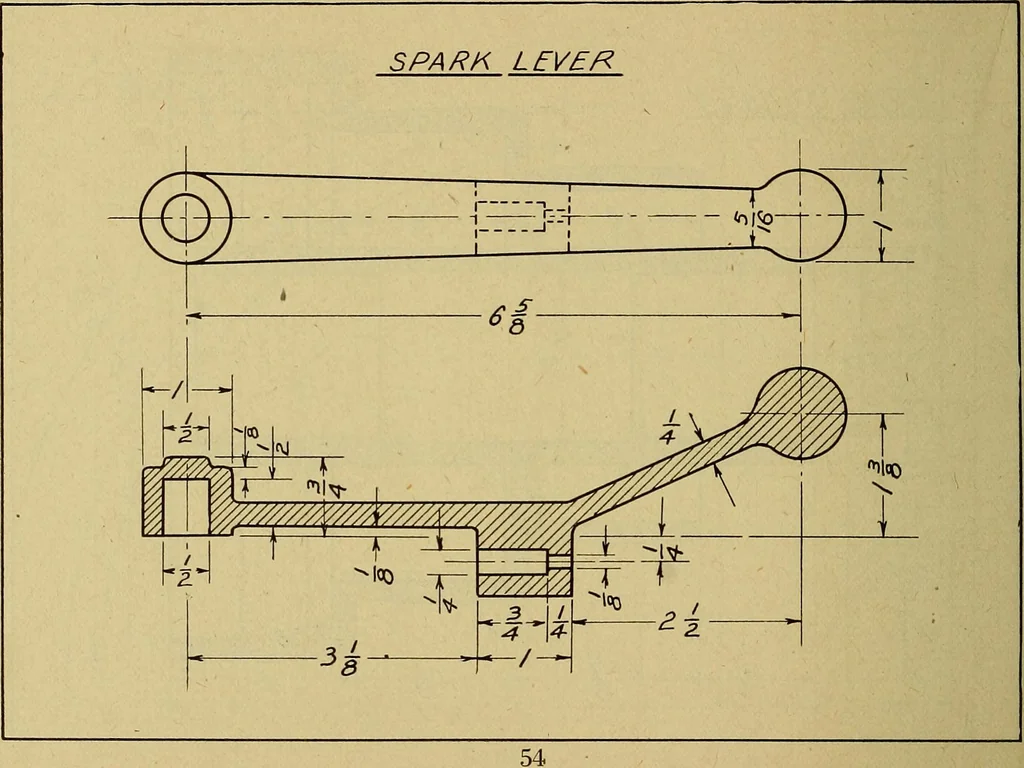

53 … AUXILIARY VIEWS Auxiliary views are used when it is neces-sary to show the true length of a slanting sur-face that would appear fore-shortened in thetop or side view. The center line of the auxiliary view isdrawn parallel to the surface to be shown inthis view. DIMENSIONS The dimensions on a…
