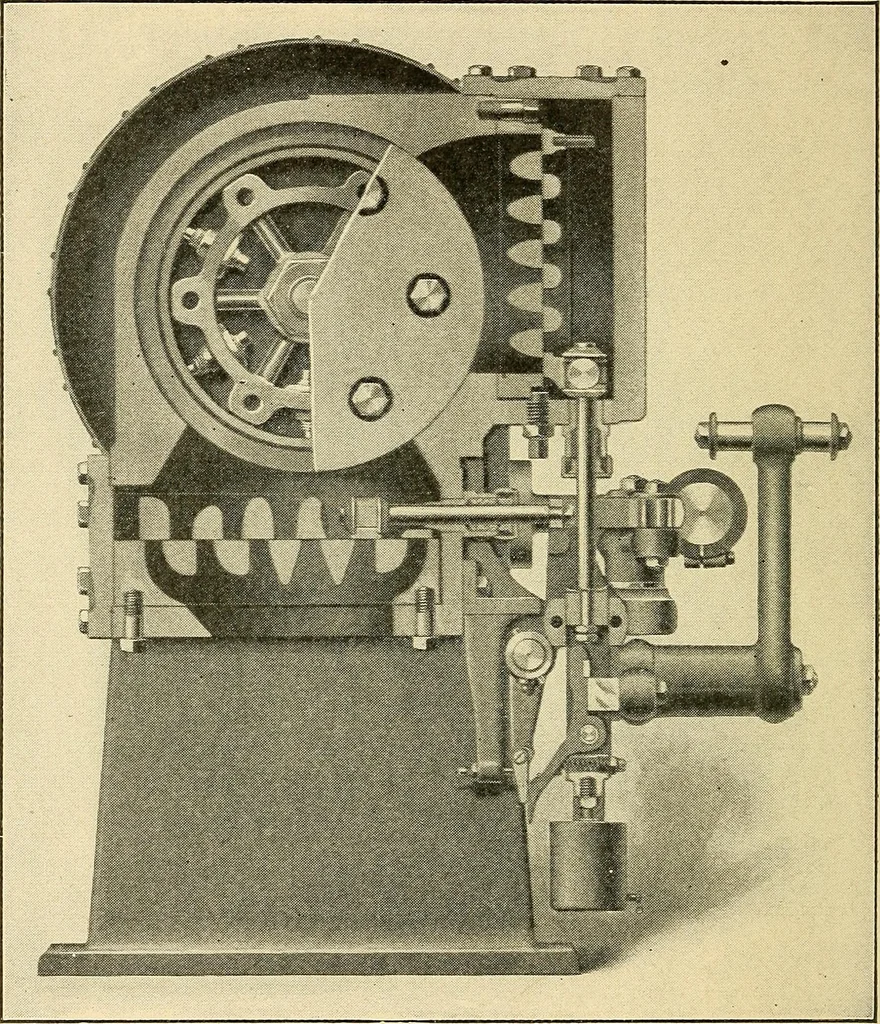

Figure 38. Ample means are provided for quickly freeing the cylinderof any water which may enter, and, should there be an un-usual pressure due to large amounts of water entering withthe steam, relief is given by the steam valves lifting or swing-ing from their seats on the ball nut I. This action… … Figure 39., Section through Cylinder and Valves. by referring to cut, which represents the position the sev-eral parts occupy at the commencement of the pistonstroke. ENGINES 153 The steel lifting block A connected to the lower arm ofthe steam lever B—the top of this lever being connectedthrough…
