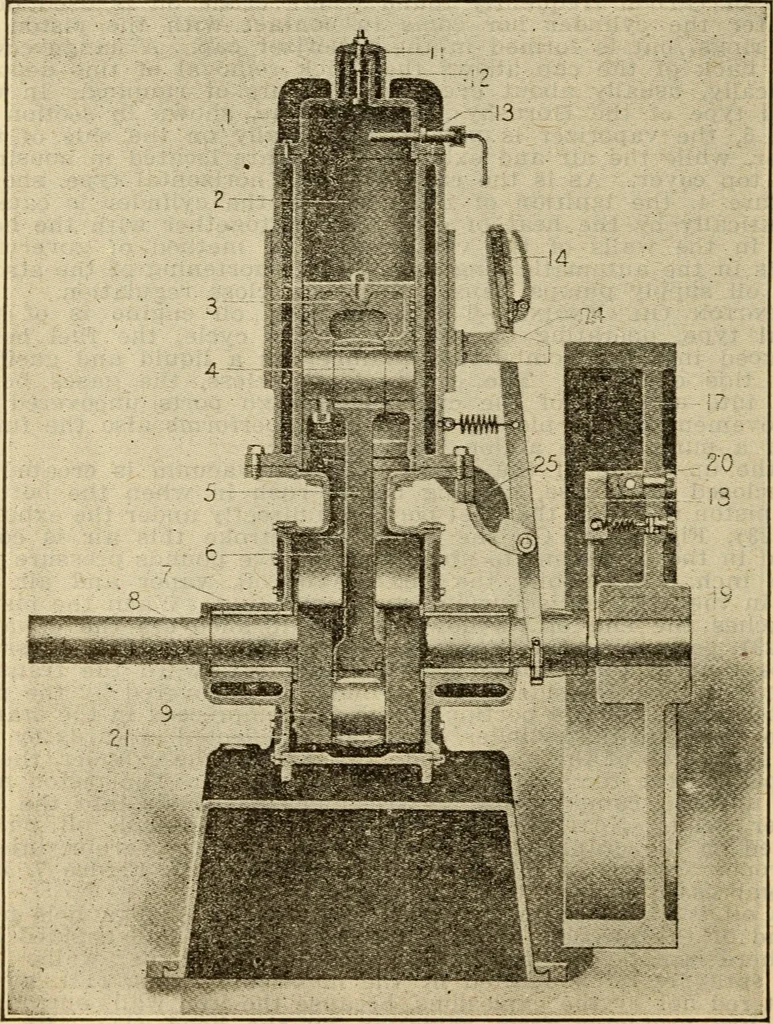

h air into the crankcase and compresses the air trans-ferred to the cylinder. Each down-stroke is a power stroke an<iat the same time compresses the air in the crankcase prepara- 81071 Steam Engineering tory to ■ transferring it to the cylinder by its own pressure at theend of the stroke. The… … Cylinder head.Cylinder.Piston.AVrist pin.Connecting rod. FIG. 7 Names of Parts. 6 Counter balance weights. 7 Main bearing cap. 8 Crankshaft and crankpin. 9 Crank oil hole. 10 Crankcase. 11 Hood on cylinder head. 12 Igniter plug of nickel steel. Oil Engines 810i Governor and Control.—The governor is…
