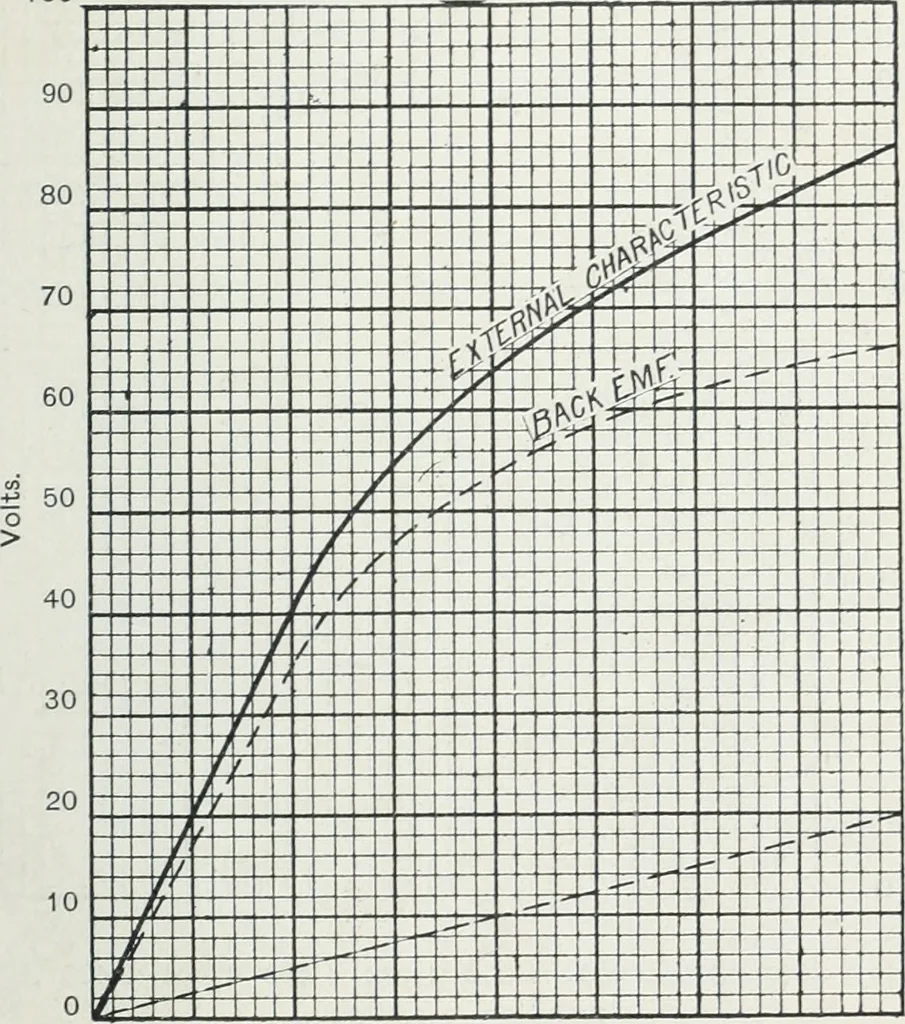

. EFFICIENCY TESTS OF A MOTOR. 155 the torque may increase more nearly as the square ofthe current, depending, however, on the saturation ofthe field magnets. For this reason, when running slowly,and taking a heavy current, a series motor can exert agreater torque than a shunt motor. This is of… … 5 10 15 20 25 30 35 40 Amperes.Fig. 51.—Characteristic of Series Mot jr at Constant speed. upwards. That is, the torque increases in a higher pro-portion than the output of the motor. This is also trueof the current curve. The characteristic features of a shunt motor areuniform speed, torque…
