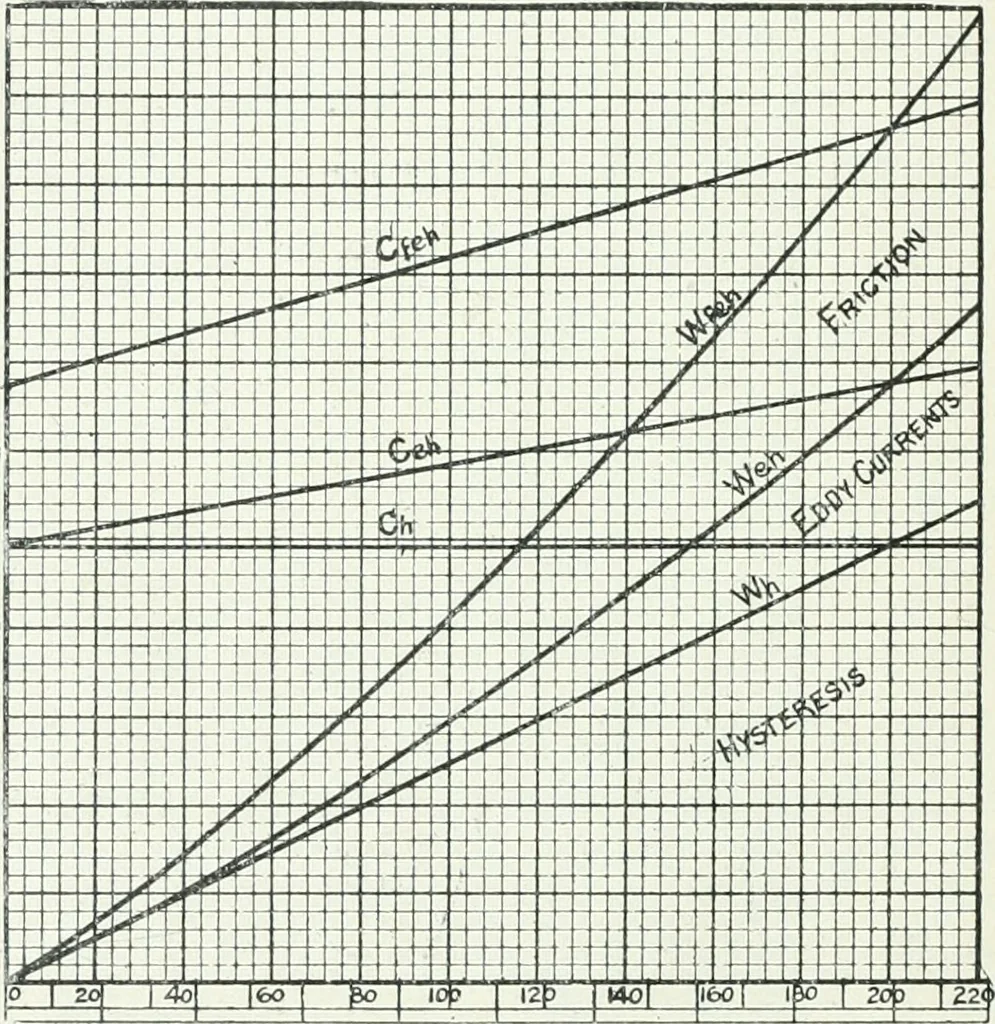

ly determined asshown clearly by the curves in Fig. 72. The ordinatesof Curve IT,, give the hysteresis losses at any speed.The ordinates between curves IT,.,, and W^ give thelosses due to eddy currents, while the ordinates betweencurves PT,,.,, and W^■^^ give the friction losses at any speed. The… … 0 100 200 300 400 500 600 700 800 900 1000 Revolutions per minute. Fig. 72.—Separation of Losses in a Dynamo. Wfeh = Watts spent in friction, eddy-currents, and liysteresis.Wffh = Watts spent in eddy-currents and liysteresis.Ifii = Watts spent in liysteresis. exactly identical with the losses which…
