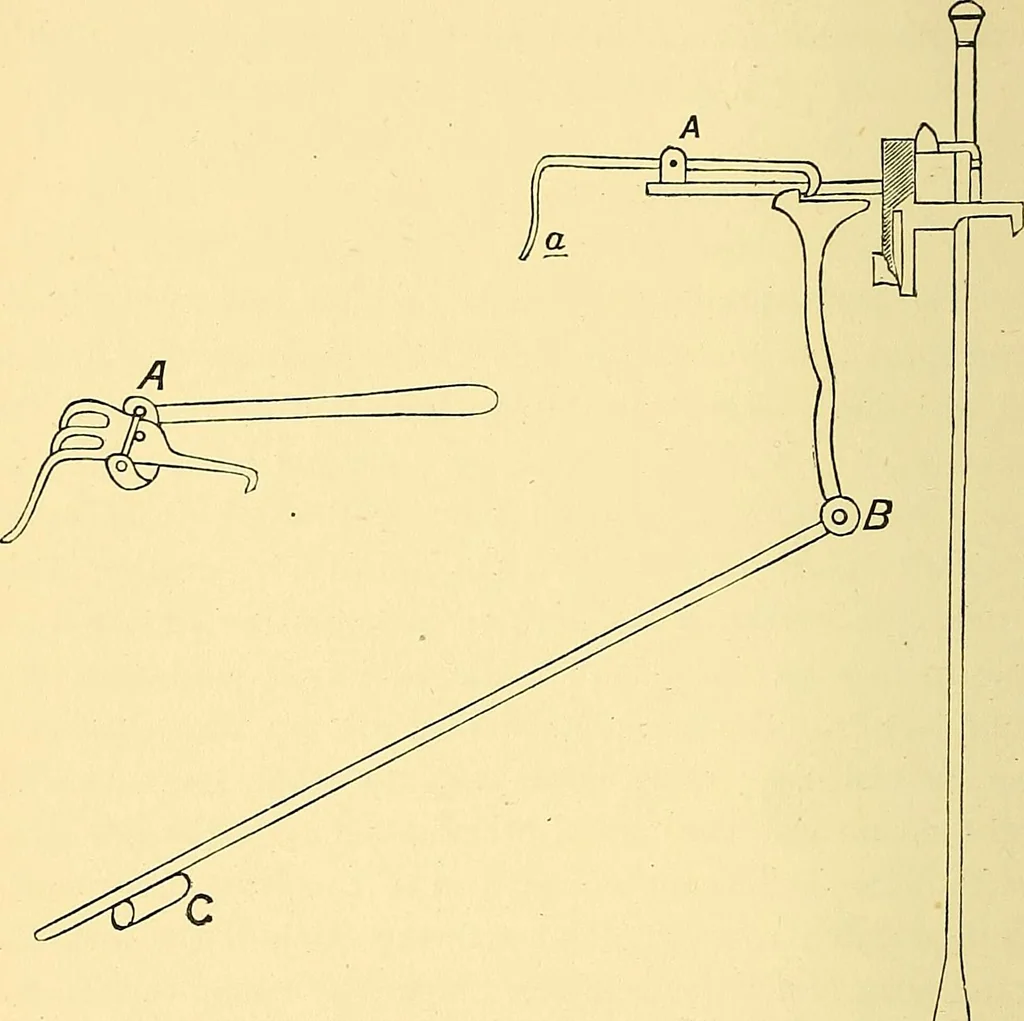

arm of the lever in its passage to missit, but when there is no weft the fork retains its position,passing through the grate, and is consequently caughtby the lever, in this manner acting upon the handlethrowing off the belt, and thus stopping the loom. ii8 WEAVING AND DESIGNING This motion is one… … © Fig. 29. will be caused by the loom being continually stopped.This shows, then, that the lever must be acted upon at theproper moment, so as to move backward at the momentwhen the weft should be acting upon the fork. The fork OF TEXTILE FABRICS. II9 must be properly balanced on its centre so as… Textile fabrics · Textile design · Weaving
