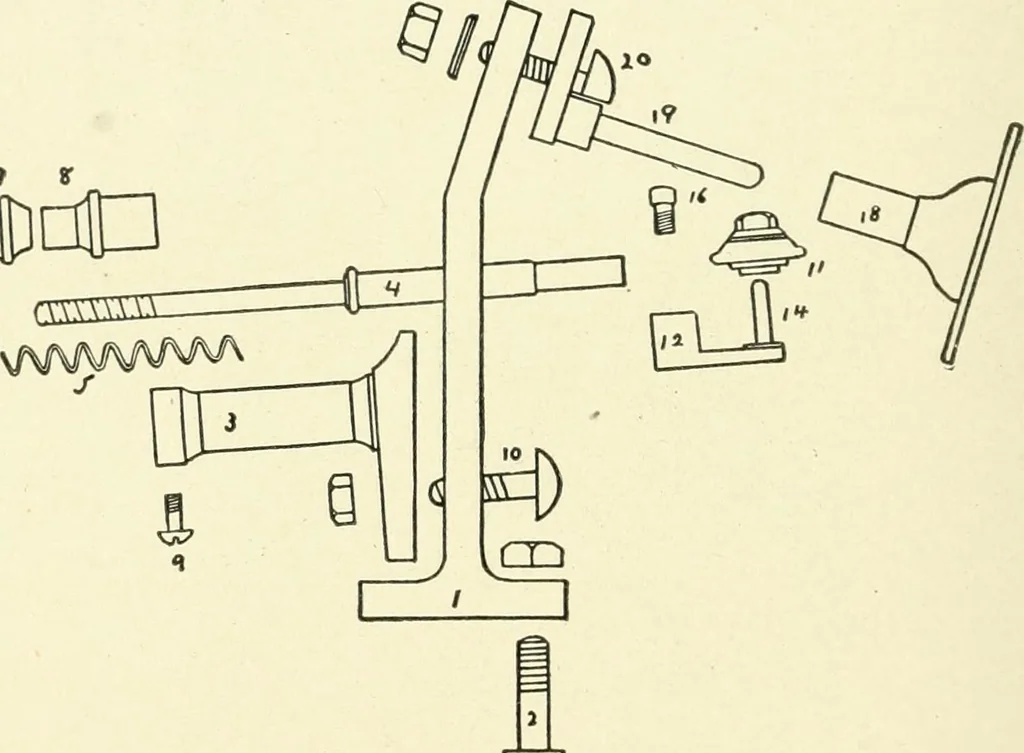

e of the rods 31, is connected by means of part 32, and link 26,and 27, to a mechanism arranged to contain and operate pawl 24,on a ratchet wheel 17, which being secured to quartz covered roll13, draws up or takes up the web of cloth as fast as it is knit. Itis then rolled up on the incumbent… … Fig. 20. Sinker Stand Parts. When the tension on the cloth between the needles and thedraft rollers will permit, the pawl 24, engages with ratchet wheel17, causing the draft roll to move forward as far as is necessaryto equalize the strain on the cloth. This tension is adjusted bymeans of spring…
