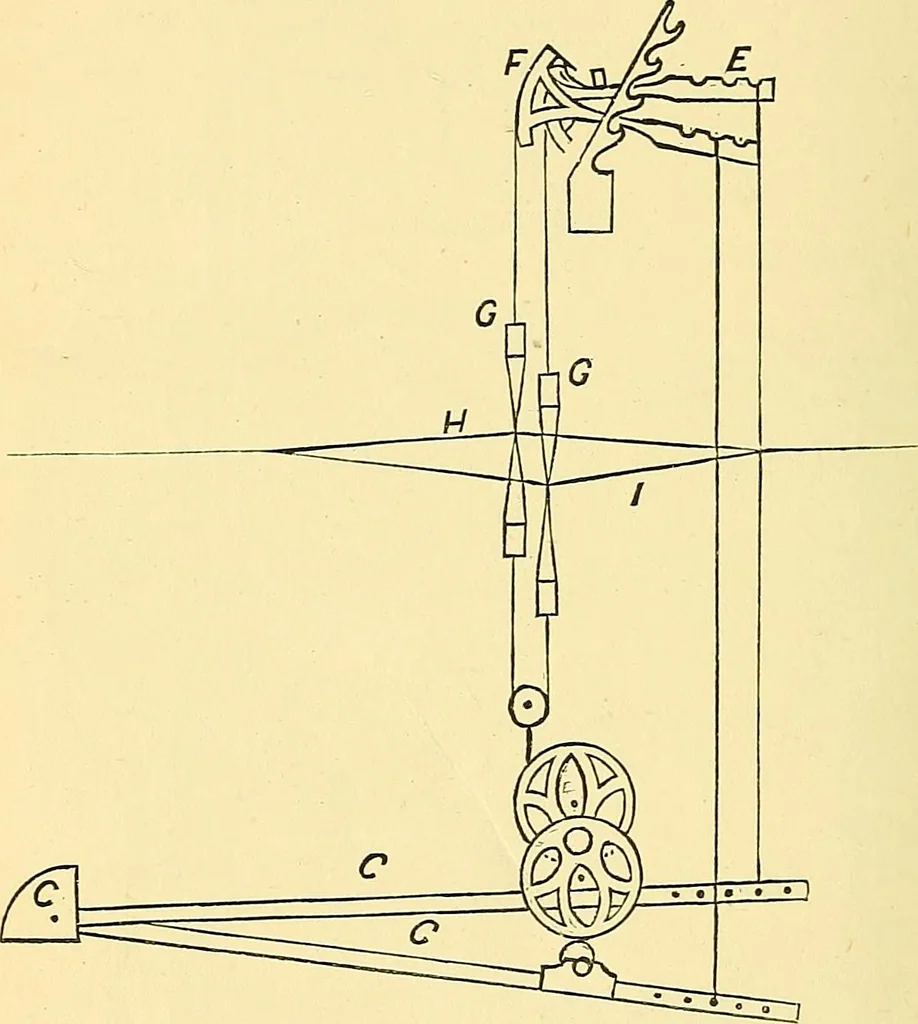

of these shafts are alsoaffixed a pair of arms, F, the ends of which form an arc ofF 74 WEAVING AND DESIGNING a circle. From these arcs the healds are hung, being con-nected with each other below by means of pulleys. In Fig. 13 I have separated this motion from the restof the loom, so as to show… … Fig. 13- with the rod at the other end. This rod simply communi-cates the motion to the heald G, by means of the lever E F,and the connection of the healds with each other at thebottom is so arranged that as one goes up the other isdrawn down, and vice versa. The lines H I show the warpseparated by…
