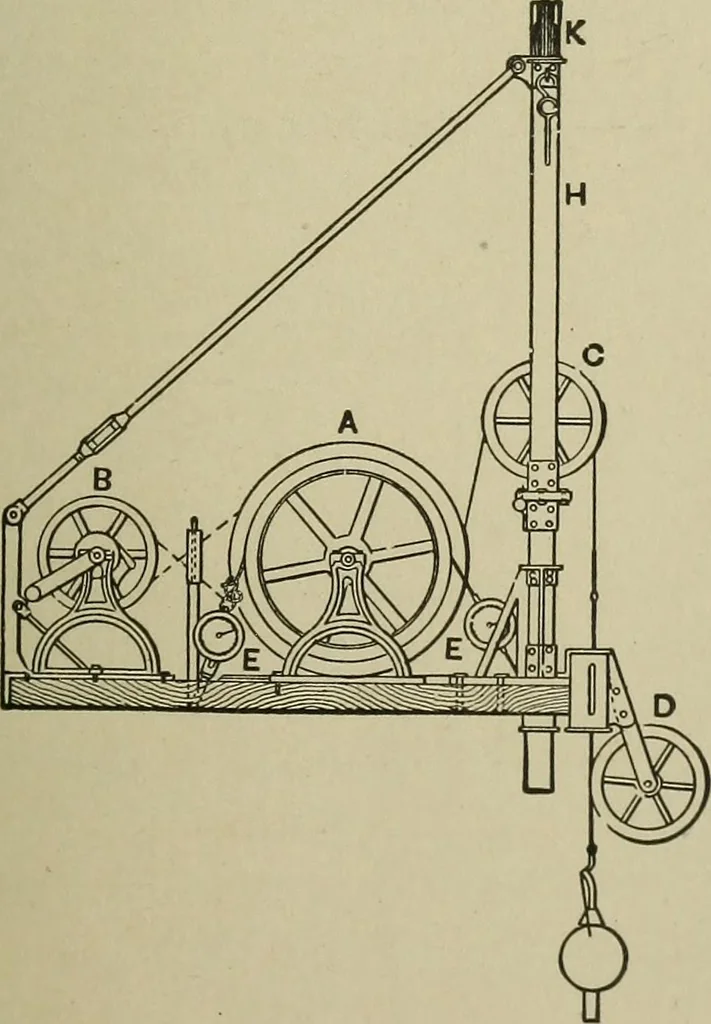

ttle inertia andmomentum to overcome as pos-sible. Its circumference is onefathom. An indicator is attachedto the axle, which registers thenumber of revolutions. The auxil-iary pulley, B, is composed ofthree pulleys : one for the wire,one for the belt going to the drum,and the other for the belt… … 202 NAVIGATION, VESSELS, MARINE APPLIANCES, ETC being attached to its axle, the amount of wire paid out can thus beobtained. A very important feature in this machine is the accumu-lator, which is composed of spiral springs contained in two verticaltubes, one of which is shown at H. These springs…
