A practical treatise on weaving by hand and power looms; intended as a text book for manufacturers by hand and power looms, and power loom engineers .. (1846)
White, George · Glasgow, J. Niven · leaf 133

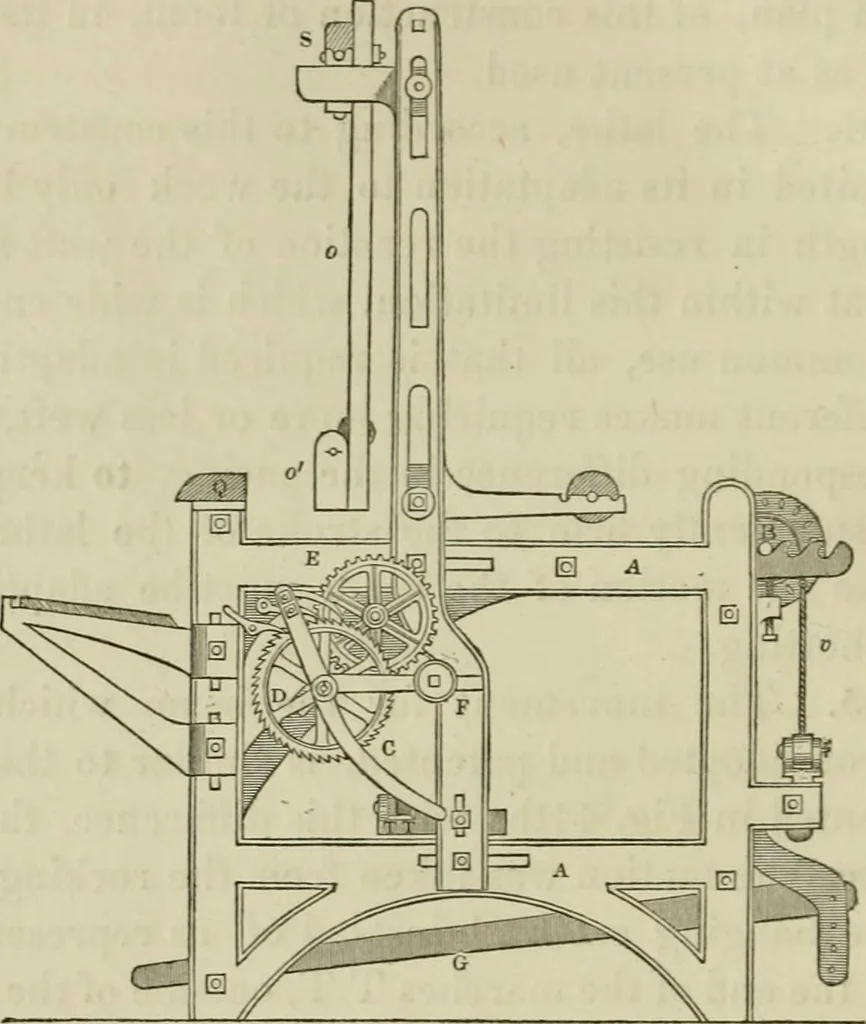

motion of the beam;and for this purpose the upright arm of the bendedlever is furnished with two catches, made to workthe ratchet wheel D, whose pinion acts on the spurwheel E, fixed on the axle of the beam. Whentherefore the bended lever is lifted, as is done in thepower loom by the sword, the… … Fig. 44, Dandy Loom. loom on studs for that purpose. The weight F on thehorizontal arm keeps it to the motion of the lathe.207. The motion thus given to the beam is uni-form; and to stop it from going on, so as to preventgaws* from being made by the intermittent break- * There are four descriptions…
Weaving · Looms
