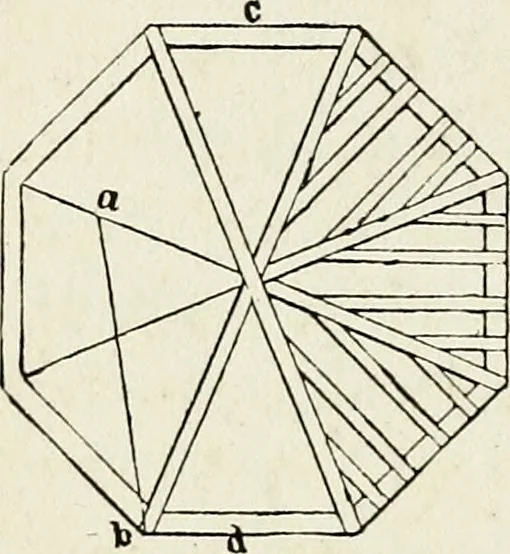

e orjacks against a hip half the thickness of pole orhip, squared back from their down bevels, mustbe taken off. Side bevels of these jacks are obtained byadding the distance from the dotted line to thecorner to the gain of a common rafter inrunning that distance; take this on the bladeand half the… … Fig. 56 viously made, must be referred to. The lengthof hips is found as usual fromrise and run, the run beinghalf the diagonal of the octa-gon. Cut the first pair fulllength to butt against eachother, the next pair are to beset up at right angles tothese, and each is to be cutshorter than the…
