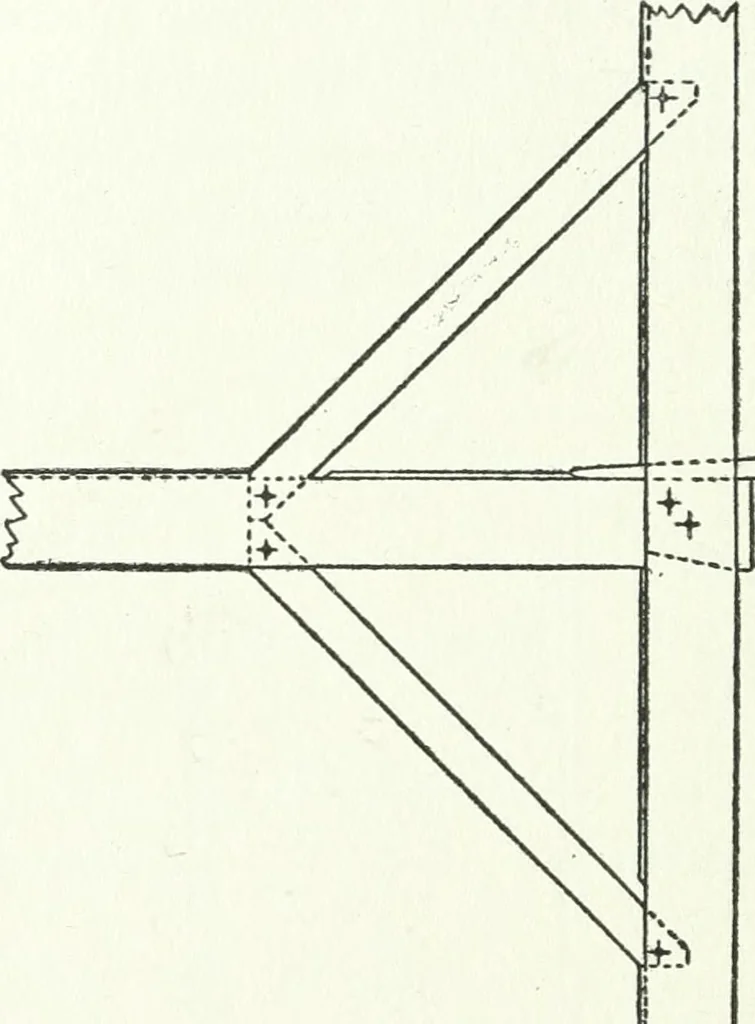

howing Purlin Post Bracing. which is especially adapted to barns having flatroofs and equipped with hay carriers. A verystrong bond is needed in such barns betweenthe purlin posts, to prevent the excessive weightplaced on the top rafters by the hay carrier fromspreading them apart. The girder is… … Fig. 125. Mortise Joint for Cross-Tie. such a girder, as the rafters will hold the shedpost to its place if it has a tie at the bottom anda loft tie up some 8 or 9 feet. Of course, wherethe barn is extremely high, it is well to put inthis girder. Fig. 125 shows a section of the purlin post,center…
