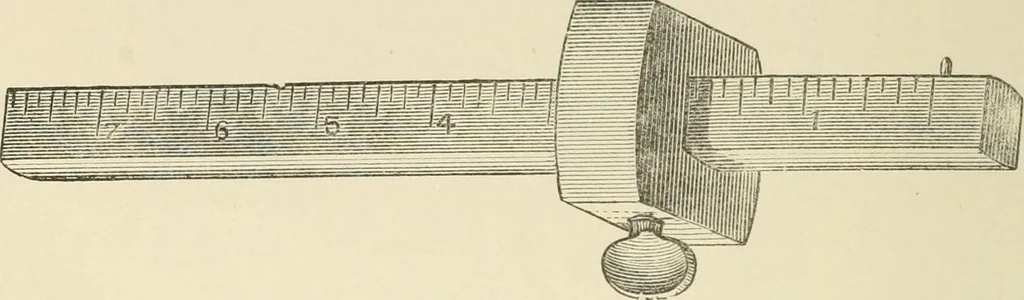

0° if measured on the other. To setthe bevel, place the stock or beam against the edge ofthe board and swing the blade until it exactly coincideswith the line. Fig. 10 shows the usual form of marking gaugc. Thesteel spur should be filed to a thin cutting edge; the 174 WOOD PATTERN MAKING long way… … Fig. 10. the beam slides is called the head. The graduations onthe beam are not to be depended on for accurate meas-urements. The mortise ^au^C has two spurs; one of themis moveable on the beam and is fastened to a brass slide
