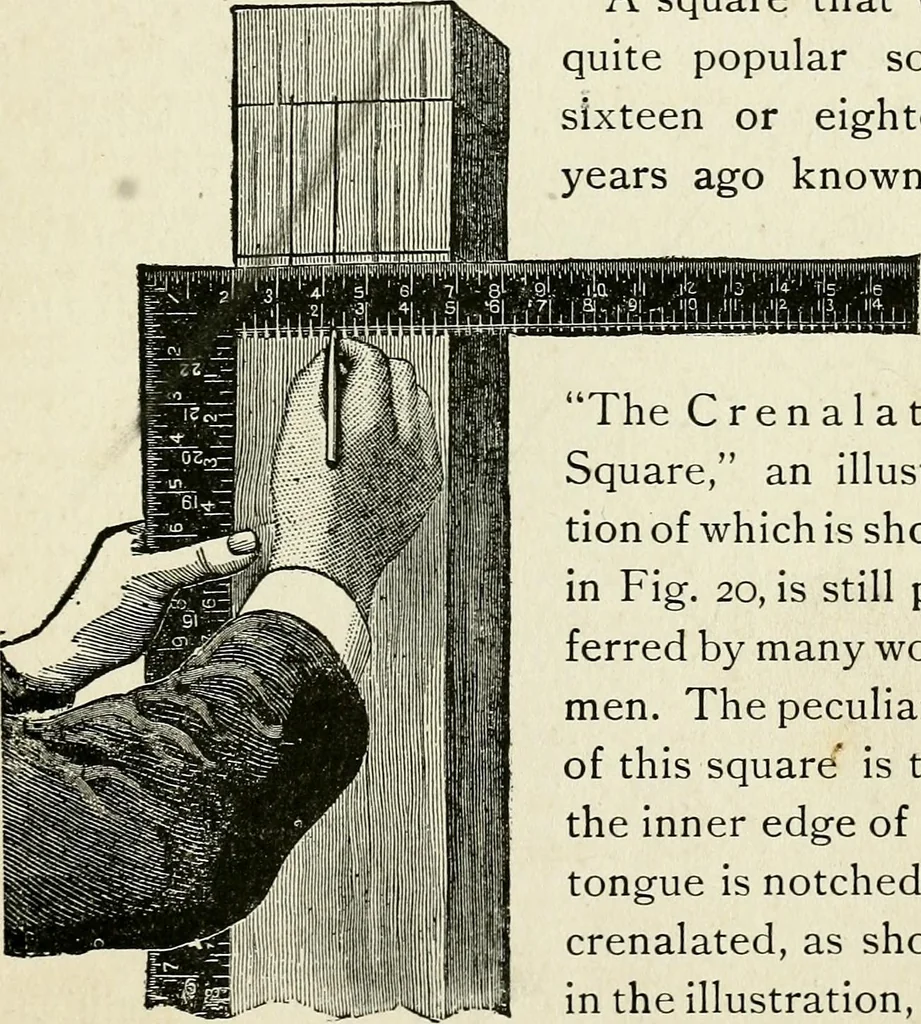

erethe larger tool is unavailable, and may on emer-gency be employed for laying out rafters, bracesand similar work. A square that wasquite popular somesixteen or eighteenyears ago known as The CrenalatedSquare, an illustra-tion of which is shownin Fig. 20, is still pre-ferred by many work-men. The… … FlG. ed as 4» PRACTICAL USES OF cil may be inserted, then the square may bedrawn along the timber or board, with the bladeheld snug against the edge, as shown, and mor-tises or tenons can be laid out at will. Besides being crenalated, these squares haveall the advantages of other squares, and are…
