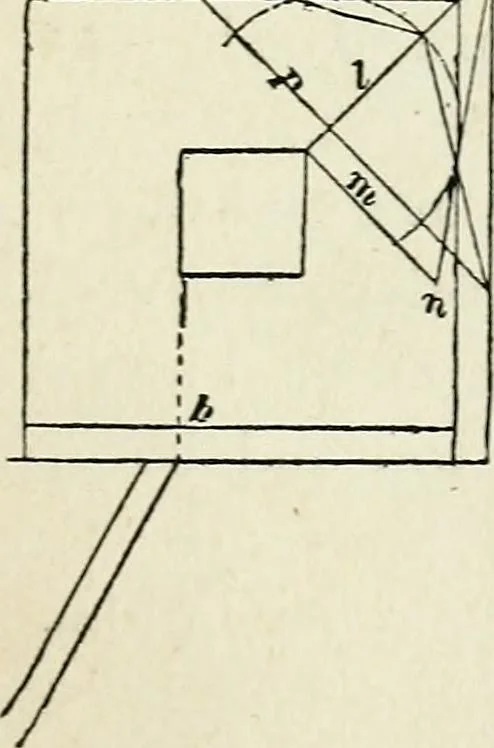

these and the result is the diagonal. To Find the Bevels and Width of Sides a7id g^— rpfiEnds of a Square Hopper, Fig. 52.—The large square repre-sents the upper edges of thehopper, and the small one thelower edges, or base. Thewidth of the sides and ends isfound in this way: Take therun, ad, on… … Fig. 52 9o PRACTICAL USES OF base on tongue; the latter gives the cut. For amiter joint take width of side on blade and per-pendicular height on tongue; the latter givesthe cut. For the cut across the sides of the boards takethe run ab on the tongue and the width of sideon blade; the tongue gives…
