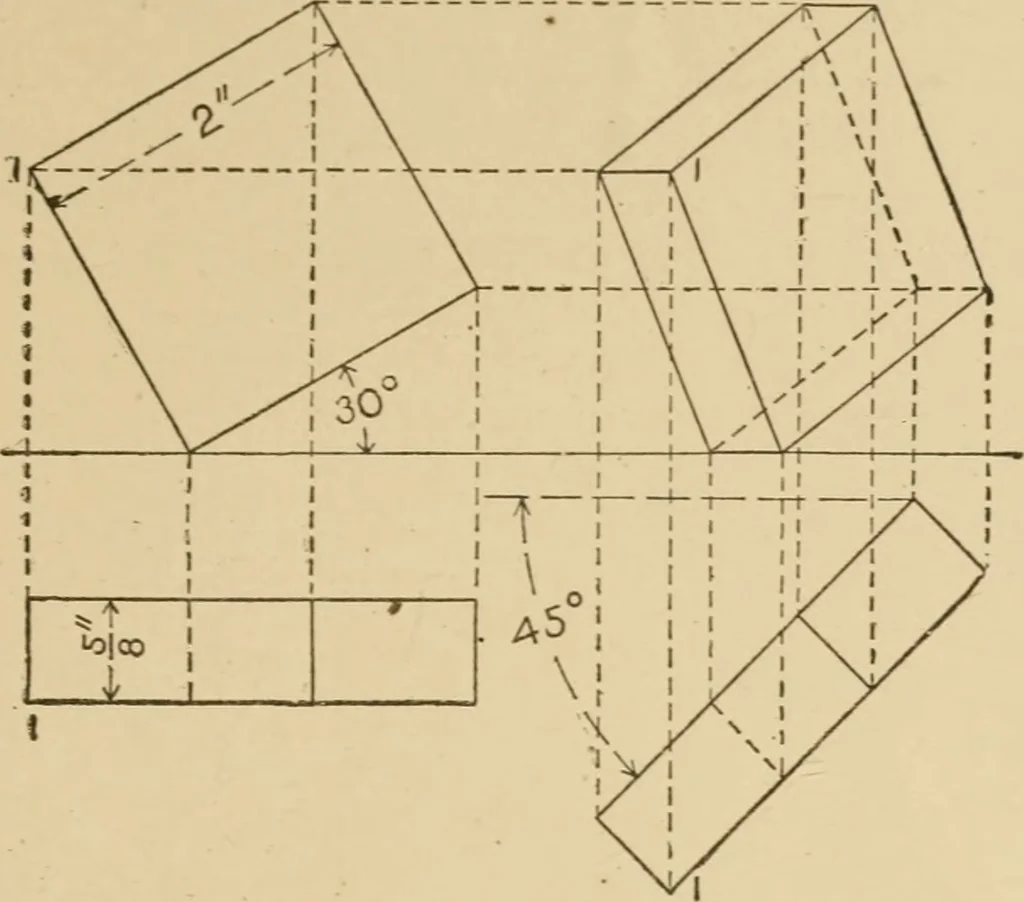

Fig. 14. Fig. 15. of 30° with H remaining the same, the plan must remain the samesize and shape. If the angle through which the prism be turned is 45°, we 104 MECHANICAL DRAWING. 13 have the second plan, exactly the same shape and size as the firetThe elevation is found by projecting the corners of… … Fig. 16. tically up to the heights of the same points in the first elevation.All the other points are found in the same way as point No. 1. A/A B
