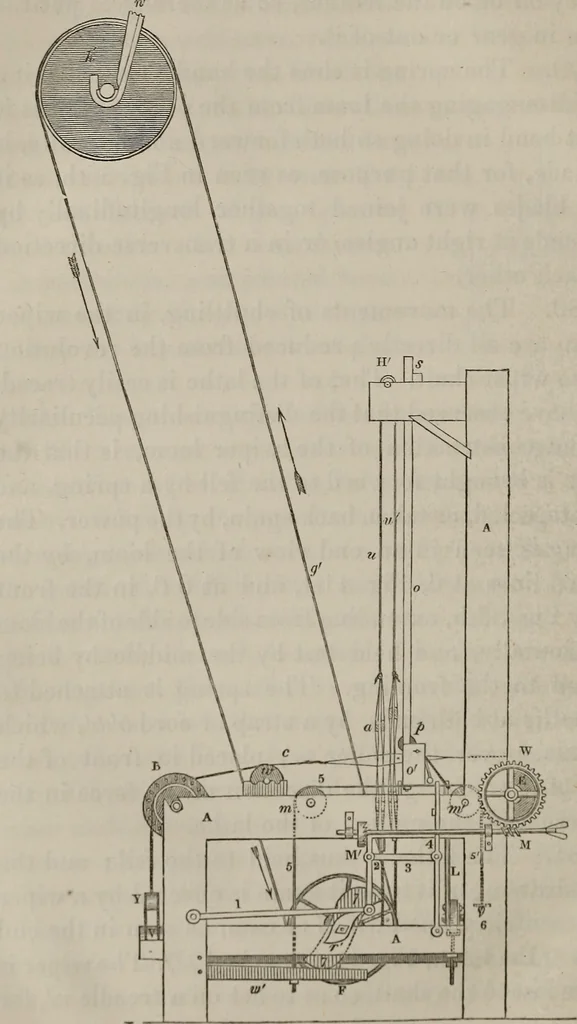

n front of thesole of it to change the direction of the force in thedirection of the motion of the lathe. 181. The lathe is thus held to the fell; and thewithdrawing of it from it again is effected by a wiperor eccentric-shaped wheel or cam, as seen in the endview of the loom, Fig. 41st, marked 7… … Piff. 11. End Virw of the Old Wiper Loom. ON WEAVING BY POWER. Ill munication changed by the roller m9 in a mannersimilar to that with the spring. The lathe is thusplaced between two forces, and as the treadle is al-ternately depressed by the revolution of the shaft,the spring brings it forward to…
