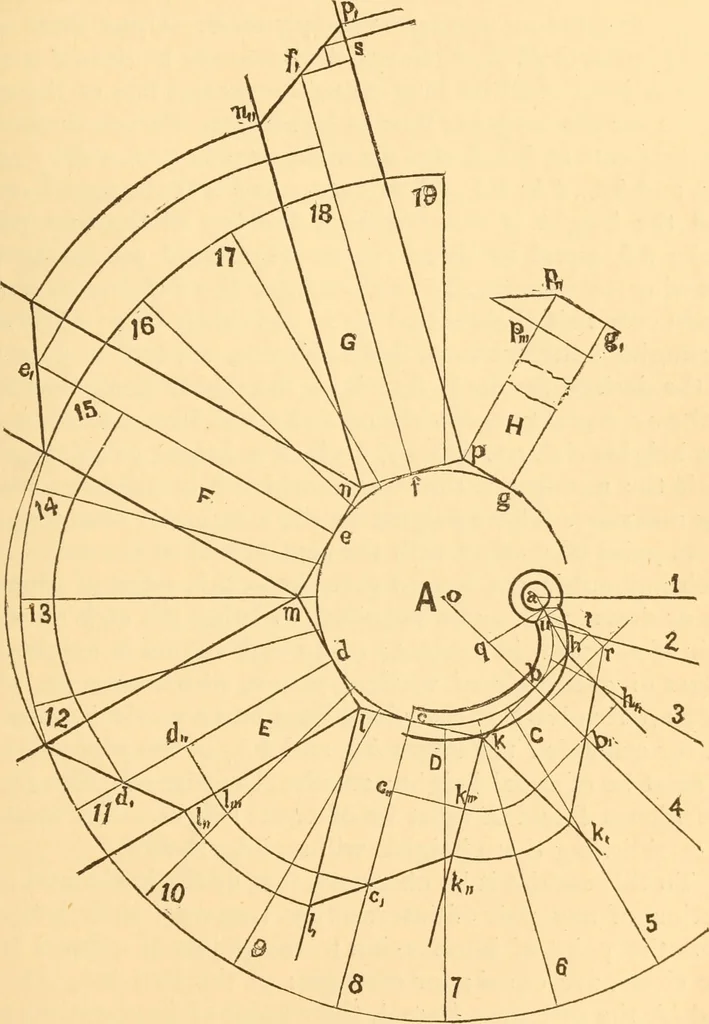

; the larger one equal in diameter to the diame-ter of the newel-cap, the inner one distant from the outerone equal to half the width of the rail. Let the first joint inthe hand-rail be located at b, at the fourth riser; through bdraw h k tangent to the circle. Select a point, //, on this PLAN OF… … Fig. 158. the curve from b to the point of the mitre of the newel-cap,the curve being tangent, at this point, to the line a h. Selectpositions for the other joints in the hand-rail as at c, d, c, and /. 280 STAIRS. Through these draw lines tangent to the circle.* Then thehorizontal projection of…
