Modern carpentry and joinery : being a compilation of the very best things and most modern and practical methods known in the arts of carpentry and joinery (1910)
Hodgson, Frederick Thomas, 1836- · Chicago : F. J. Drake & Co. · leaf 175

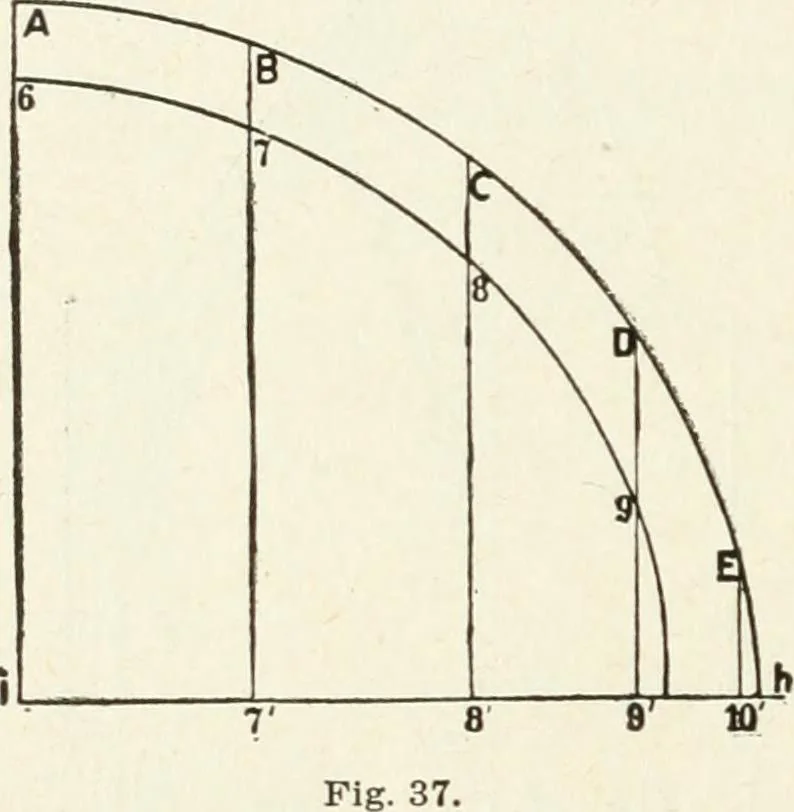

ep as the sill, with 172 MODERN CARPENTRY tenons at each end. and inserting it in the mortises forthe pulleys, as shown at B, Fig. 36. A straight-edgeapplied to this and the sill will at once show if thehead is in the correct position, and if the edges arevertical as they should be. To Obtain a… … Make these equal in height to the corresponding ordi-nates over the springing line in the elevation, and drawthe curves through the points so found. The groovefor the parting bead can be marked by running a% in. piece around the inside of the sash-head, thisbead being generally put in parallel. It…
Carpentry
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
