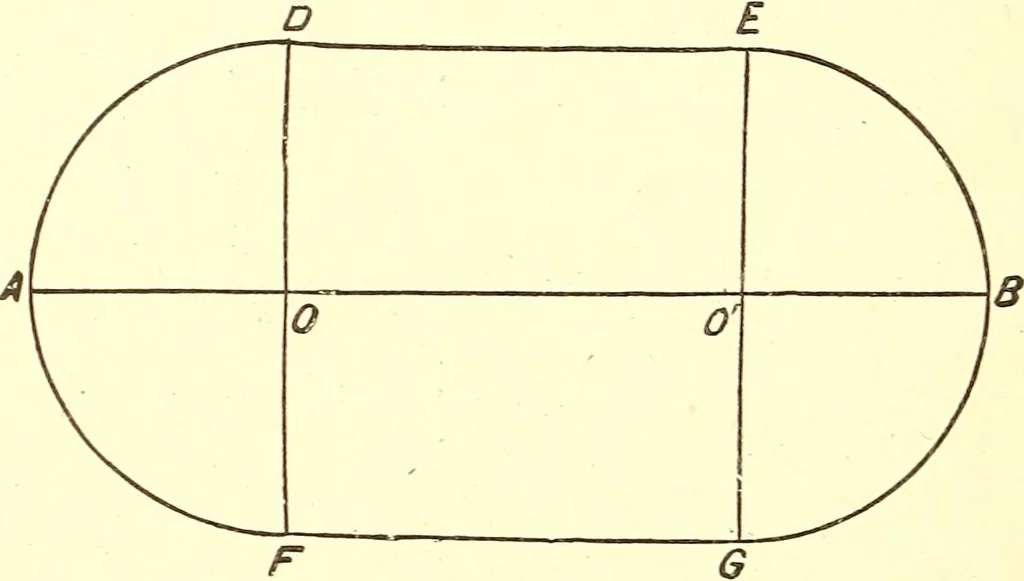

IRON AND COPPER-PLATE WORKER. the product by one-half tlie difference of the two ends;then subtract the quotient from the radius, and the remain-der is the versed sine. The diameter AB {Fig. 114) equals 12 inches; CD equals 5 inches ; the slant height DB equals 10 inches ; requiredthe radius : 10 X… … ^ig. 5- To draw a Figiwe having Straight Sides and SemicircularEnds.—Draw a line AB (Fig. 115) equal to the givenlength ; make AO and BO each equal to half the givenwidth. Through O and O draw indefinite lines perpen-dicular to AB ; with O and O as centres and OA as radiusdescribe arcs cutting the…
