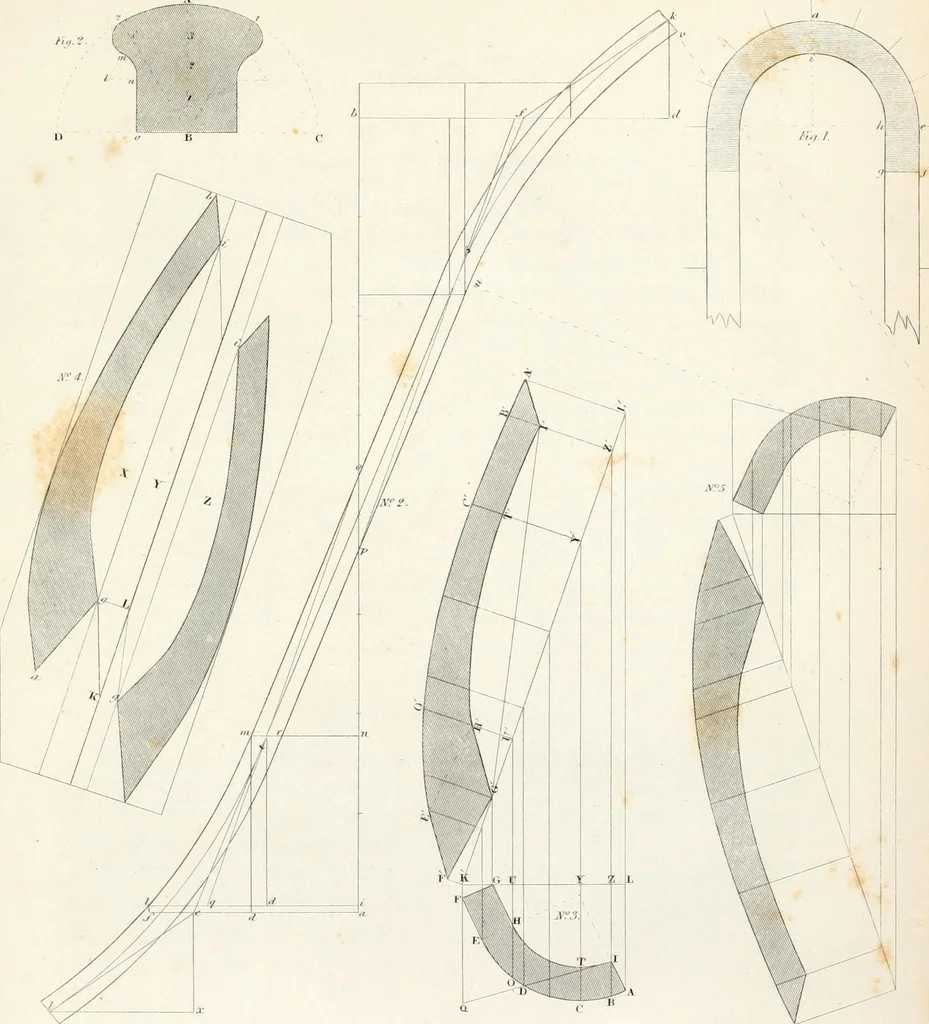

ual to e I,and f s equal to f k. Then form the curves, or easolFs, by theintersecting of lines, or by producing lines at right angles from therail, as represented by the dotted lines u and v, until they meet, andtheir junction will be the centre for describing the curve. Thebreadth of the falling… … STAIRS. 97 Construction of the Face Mould, No. 3. Let A D E F G H I be the plan of the rail, and E F, G H,a portion of the straight part ; I being the upper, F the lower, andD the middle resting points. Make the stretchout of A D equal tothat of D F. In the figure of the falling mould, produce the…
