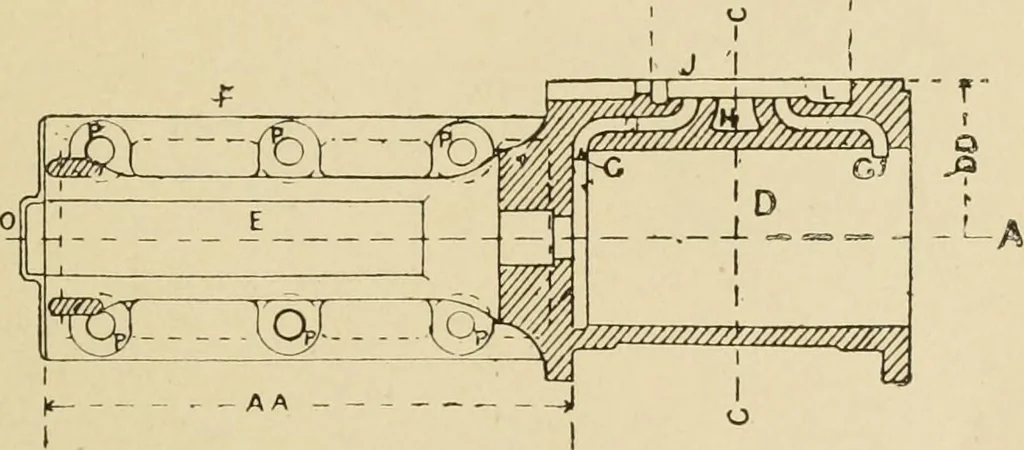

INE CYLINDER. 53 line B-B in Fig. 37. Fig. 39 is a cross section takenthrough the lines C-C in Figs. 37 and 38, and Fig. 40is a front view of Fig. 37, looked at from the directionof the arrow. In these figures D is the cylinder bore,E is the guide bored for the crosshead, F is a foot bymeans of… … Fig. 38. Cylinder—Sectional Plan. in the steam chest casting,—the joint being made inthe centre of the valve rod thus, in order to affordfacility for taking off the cover for setting the valve.One half the facing to match the gland of the stuffingbox is shown at K. L, Fig. 37, is the opening for…
