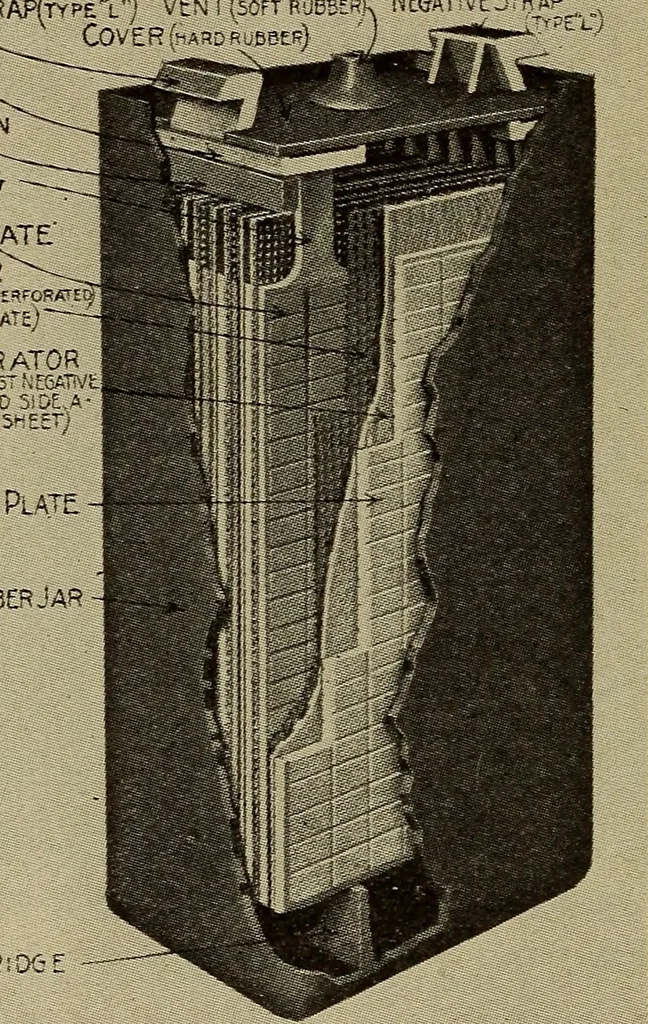

wood a sheet ofperforated hard rubber is placed, as shown in Fig 167, which helpsto prevent washing out of the active material. The plate groups are placed in an acid-proof tank, generallyof glass, hard rubber, or of wood lined with lead, and are sup- P05ITIVE STRAP/typei■ ^ CovCross Bar ,… … HaRDHUBBERJAR Fig. 167.—Portable type of lead battery. ported in various ways as shown in Figs. 168 and 169, amplespace being left below the plates for the accumulation of sedi-ment which must not be allowed to short circuit the plates. To minimize leakage of electricity, the tanks are insulated…
