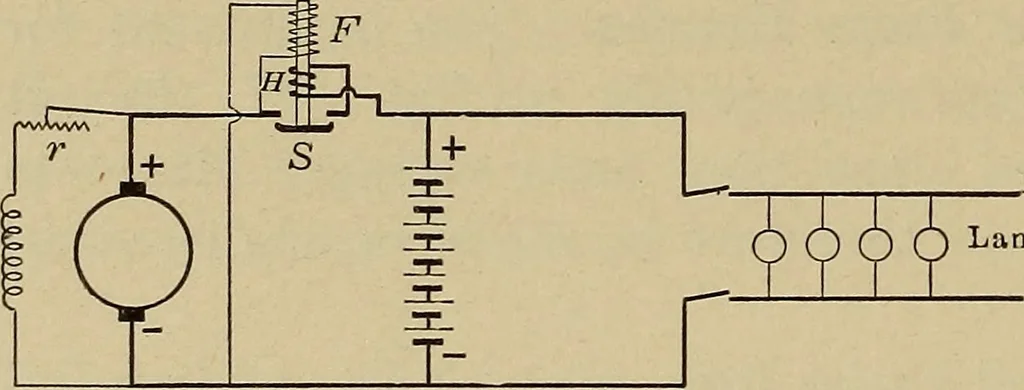

he battery, the lights are disconnected, the generator whichis shunt wound is started up by the engine, and the shuntrheostat r is gradually cut out to raise the generator voltageuntil the value is reached for which the solenoid F was set, the,pull of this solenoid then closes the switch S and… … Lamps r SS Carbon Pile Fig. 187.—Connection diagram for a small iso- Fig. 188.—Lamp circuitlated lighting plant. regulator. If, due to a loose field connection or for some other reason, thegenerator voltage drops below that of the battery then currentflows back through the coil H in such a…
