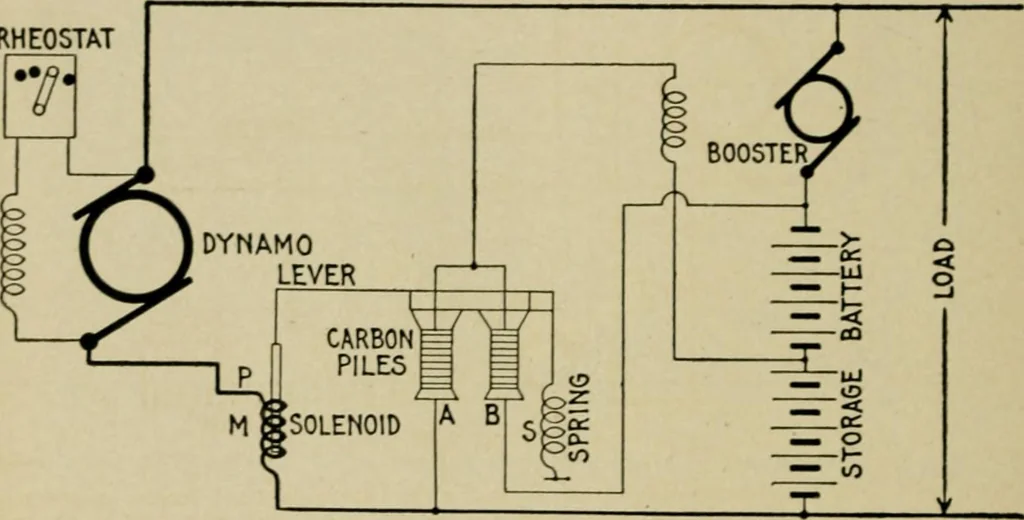

e dynamo. The shunt booster acts to increase the voltage applied to thebattery so that the charging current will flow into the latter. 986 HAWKINS ELECTRICITY Ques. How is the battery used with a shunt boosterproportioned ? Ans. Usually sufficient battery is provided to carry the entireload during… … Fig. 1,195.—Entz carbon pile booster system (Electric Storage Battery Co.). The boosterfield winding is connected at one end to the middle p)oint of the battery. The other endis connected to the upper contact points of two carbon pile resistances, A and B. Thelower end of A is connected to the…
