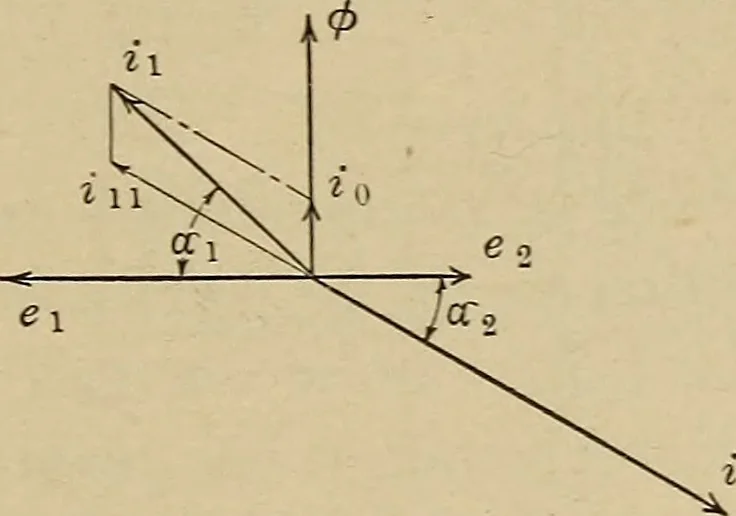

the coils n2 and n-\respectively, and lag the flux which produces them by 90 degrees,see the footnote on page 207. ei, the applied primary e.m.f., is equal and opposite to ei&. (6) Full-load conditions. Let the secondary circuit now beclosed and let its resistance and reactance be such that i%… … Fig. 301.—No load. Fig. 302.—Full load. Vector diagrams for a transformer. u is the component of the primary current required to producethe flux </>. ei is the applied primary e.m.f. e2 is the secondary generated e.m.f. i2 is the secondary current, whose value and whose phase anglea2 depend…
