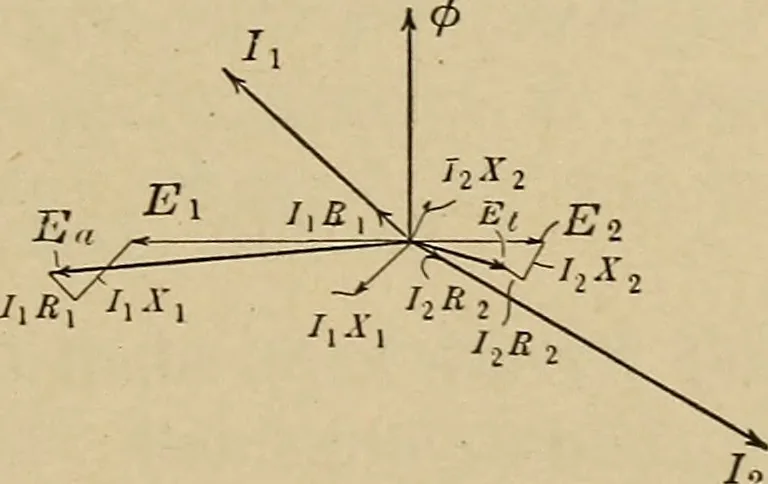

Fig. 308.—Vector diagram Fig. 309.—Vector diagram of an ideal transformer. of an actual transformer. Between the terminals ab and cd, the transformer diagram inFig. 307 is the same as the ideal diagram in Fig. 305. The vectordiagram for this ideal transformer is shown in Fig. 308 which isthe same…
