The principles and practice of textile printing (1912)
Knecht, Edmund, 1861-1925, Fothergill, James Best · London : Charles Griffin · leaf 65

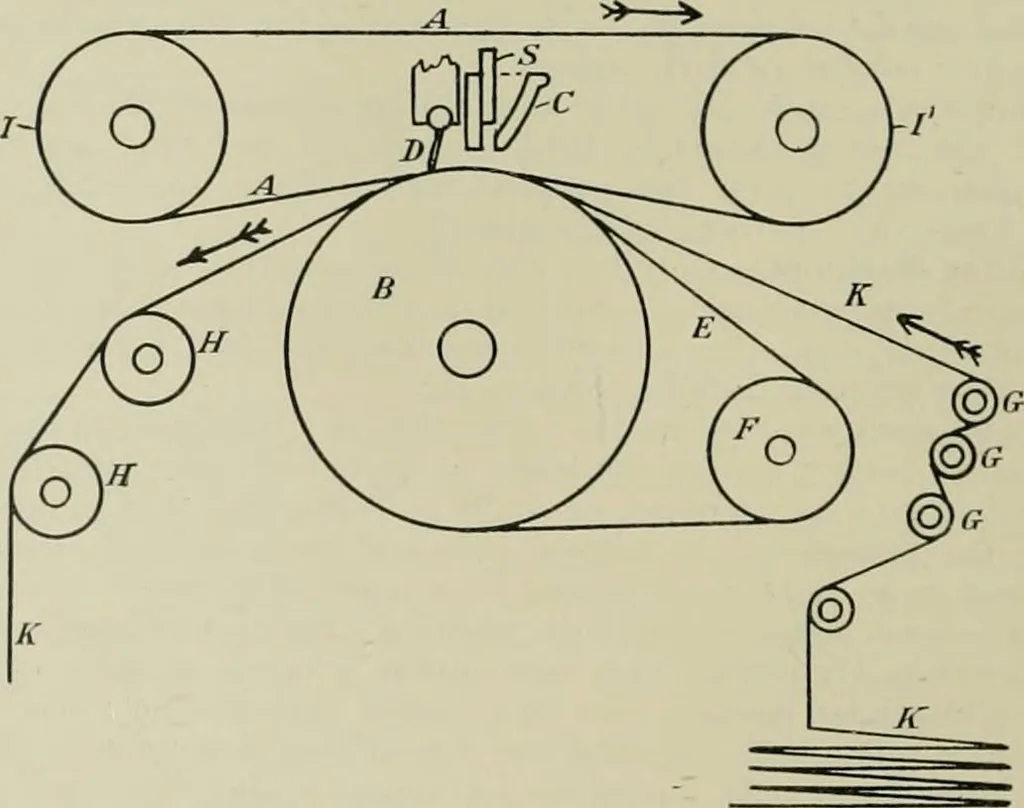

WBotiom StencilFig. 21.—Illustrating the principle of Monteiths press. leaden plates—certainly not in the effects produced, which resembled poor blockprints more than anything else. The continuous stencilling machine, patented by S. H. Sharp in 1894, isentirely free from the defects of Monteiths… … Fig. 22.—Section of Sharps stencilling machine. machine consists essentially of the following parts, geared to work together bypower, and arranged as shown in figs. 22 and 23:— A is an endless metal stencil, carried by the plain rollers I, I, one of which(I) is adjustable; B an iron cylinder, also…
