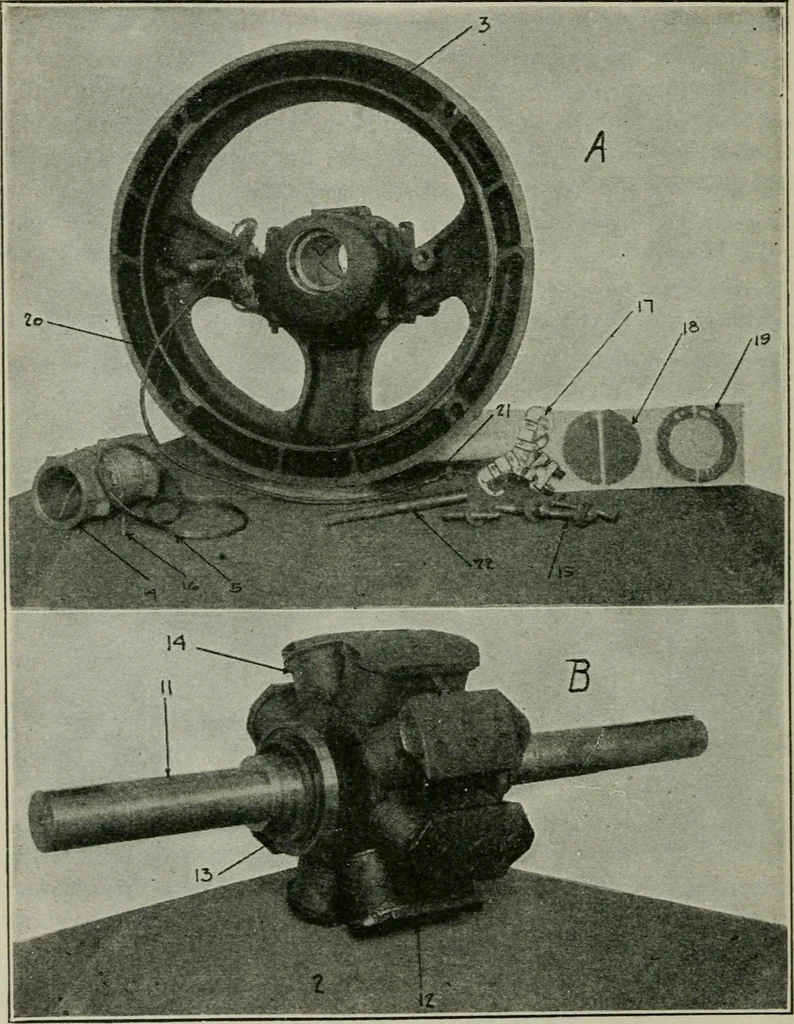

apered off (chamfered) to ;nakethe changes still smoother. 69. Concentrated and Distributed Windings.—Sometimes allthe turns for one pair of poles are combined into one coll,which is put into a single pair of large slots, one for each pole.Such a winding is a concentrated winding. (See Fig.… … Fig. 101-A-B (C andKVA., 900-R. P. M. 1. Stator frame. 2. Complete rotor. 3. Shields. 4. Journal boxes. 5. Oil rings. 6. Stator winding. 7. Statorleads. 8. Cable tips for leads. D on opposite page).—Alternating-current generator, 150, 60-cycle. Single phase. Dismantled parts listed below. 9. Oil…
