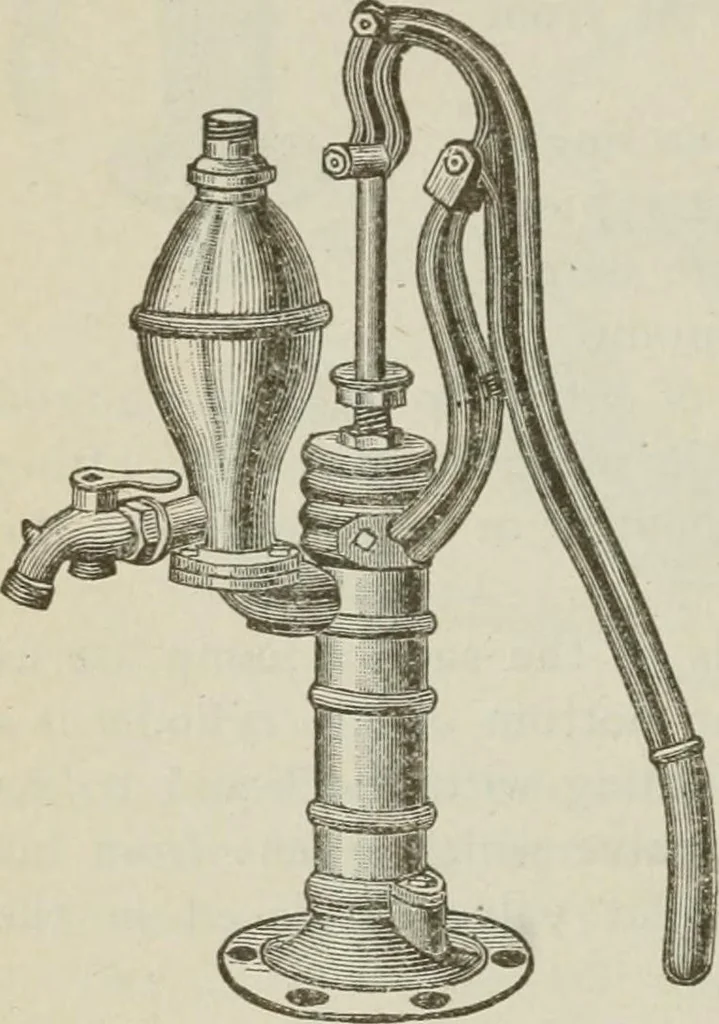

eter cylinder with a stroke of four and a half incheswith a i:i-inch suction pipe and i-inch discharge pipe will liftand force water 150 ft. high and has a capacity of .28 gallonsfor each stroke, with the water not more than twenty-five feet^below the pump. Fig. 162 represents a two cylinder force… … Fig. 160. Hand Pumps. 103 the pump not more than twenty-five feet above water willattain one hundred feet; that a 3-inch x 4 inch cylinder, i^-inch suction and i^-inch discharge will deliver .24 gallons oiwater for each stroke. Fig. 163 represents a widely used type of suction pump ,it is designed…
