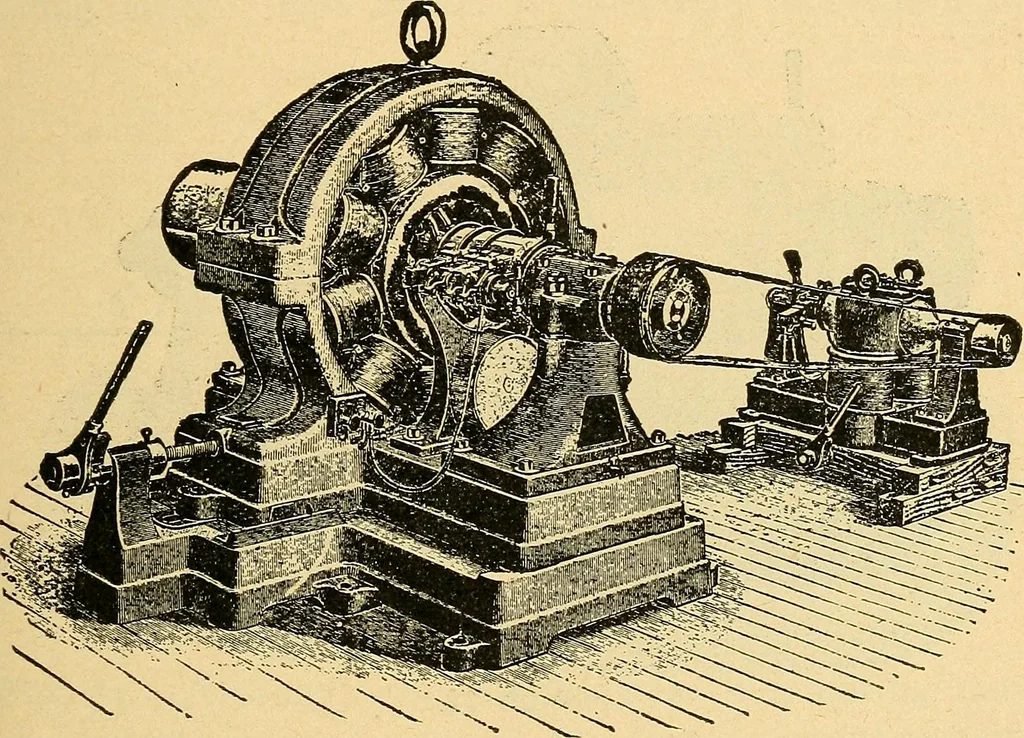

eparate exciter The two collector rings are ELECTRICITY FOR ENGINEERS 127 shown immediately at the right of the armature, whileat the right of the collector rings is shown the commu-tator from which the current for the composite windingof the fields is taken. The current generated by thealternator… … FIGURE 71. current or by means of a resistance box connected inthe fields of the exciting dynamo. This latter regula-tion is of course the more economical, as there wouldbe considerable energy wasted were a resistance usedin the main exciting circuit. Alternating currents aregenerally used where…
