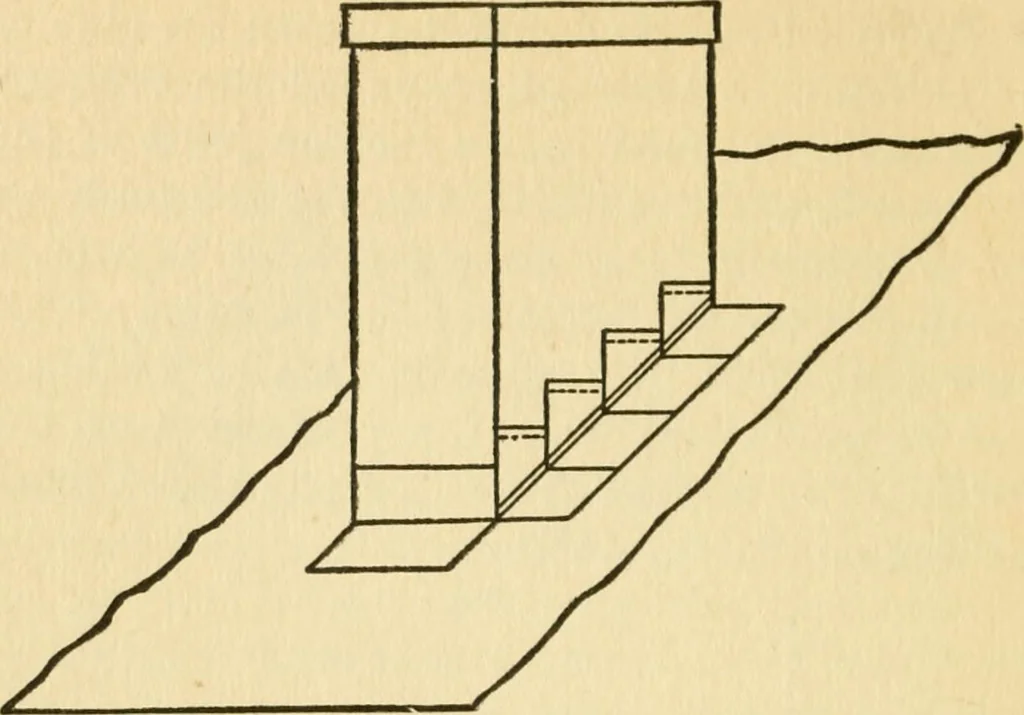

ash I Nq rSH/NJGLES L Pig. 49. Section Showing Flashing and Coanter-Flashing. Shrinkage. A word might be said aboutshrinkage. All lumber, when exposed to heat,will shrink, owing to the moistm-e drying out.In all wooden construction, all parts should becarefully framed together to reduce the… … Fig. 50. Flashing and Counter-Flashing around a Chimney. what happens when the girder commences todry out. It will shrink, causing the post aboveto settle, which will affect the part of the build-ing carried in this way. Fig. 52 shows a muchbetter way of framing these posts. The postabove rests…
