Radford's architectural drawing : complete guide to work of architect's office, drawing to scale--tracing--detailing--designing --classic order of architecture. A complete and thorough course, clearly written and beautifully illustrated; suited alike to individual study and class instruction (1912)
Radford, William A., 1865- · Chicago, The Radford Architectural Company · leaf 153

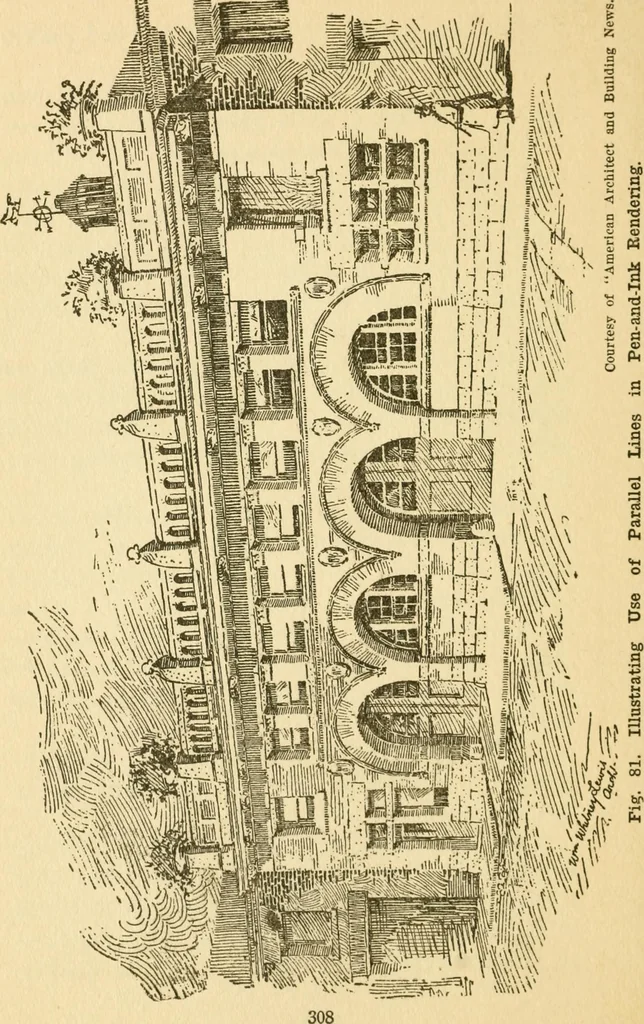

ing hard, sharp lines, are made by a seriesof parallel lines representing the shadow.Notice the treatment of the roof, the shadowof the cornice, and the general lines of thebuilding. Fig. 81 shows the use of parallel lines en-tirely for the textuie of the wall, and also forthe shadows. Fig. 82…
Architectural drawing · Architecture
