Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)

Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 171

An illustration from Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work, 1909, leaf 171

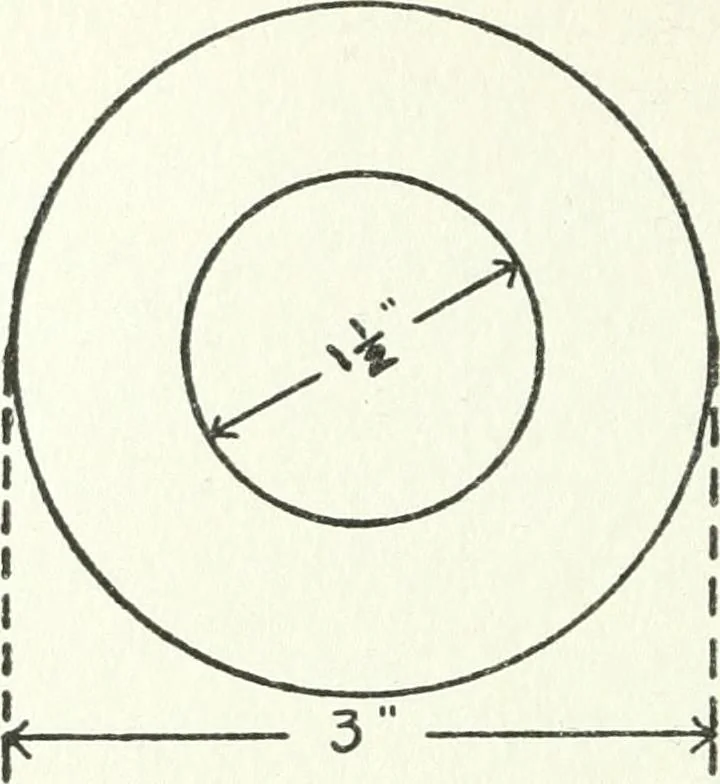

Fig. 100. Cross-Section of Moulding. 144 MECHANICAL DRAFTING moulding 8 inches. This may be drawn half-size, if desired. Before drawing the isometric, … Fig. 101. Frustum of a Cone. the section must be drawn from the givendirections. (e) Draw in oblique projection a right cir-cular cone standing on its base. The diameter
