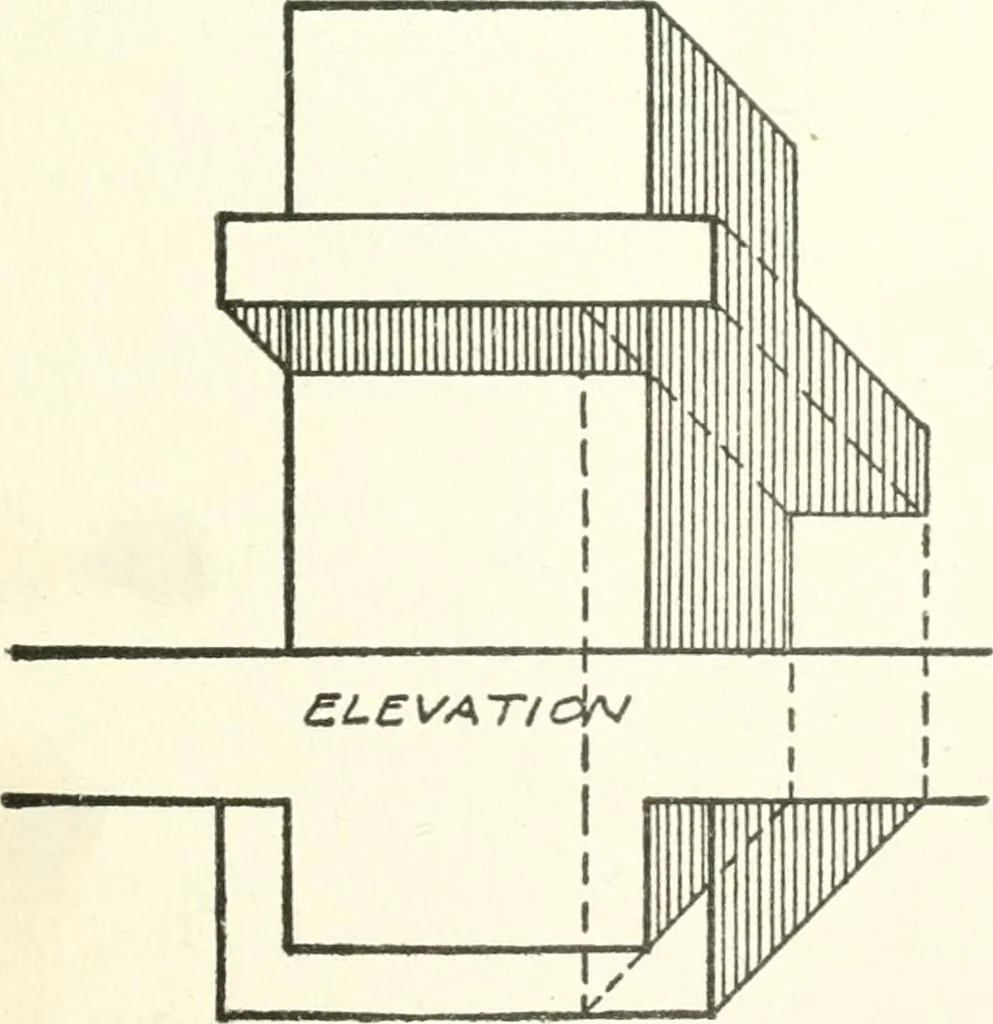

hape to the figure (seeFig. 39). A square perpendicular to the plane ofshadow will cast a diamond-shaped shadow, fortwo of the lines are parallel to the plane, andtwo are perpendicular to the plane (see Fig. 40). ARCHITECTURAL DRAFTING 267 Having stated a few principles of castingshadows, these… … PL.ANFig. 42. Illustrating Principles of Shadows. stated, to each edge of the brick. The top, bot-tom, and side faces of the brick are perpendicu- 268 ARCHITECTURAL DRAFTING lar to the plane, therefore the shadows will berectangular in shape. Pigs. 42 and 43 show a further applicationof the…
