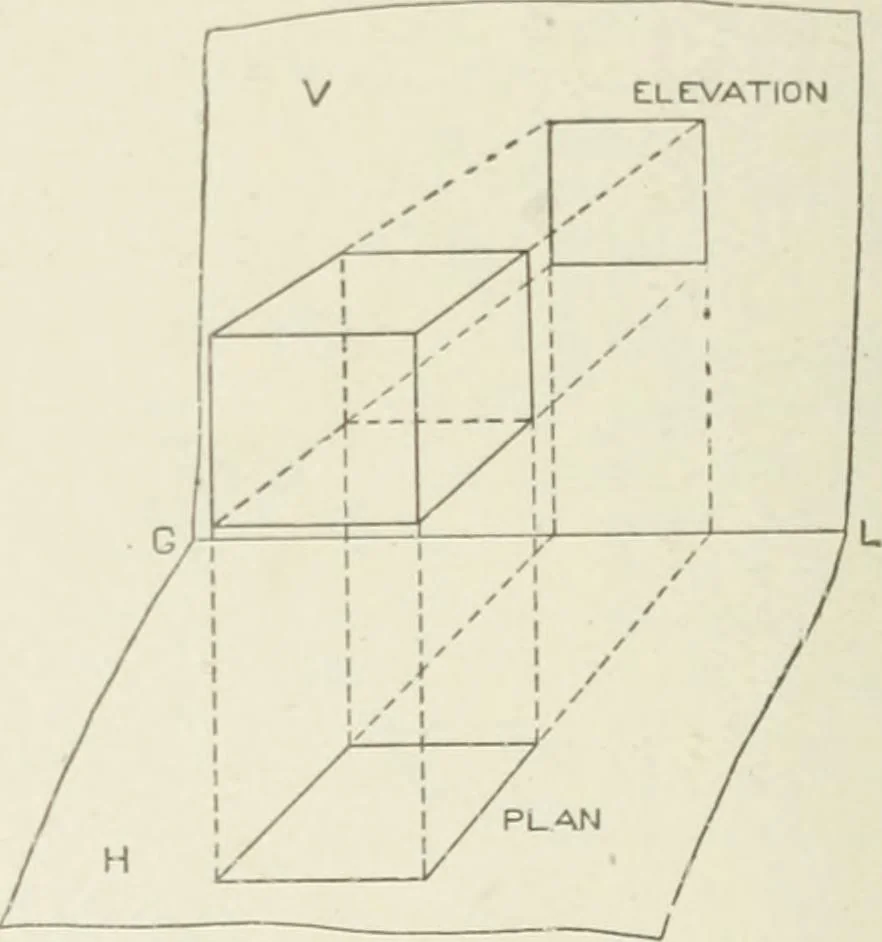

Fig. 1. meciiaxical dhawixc;. plan is directly Inflow tlie oliiect, and the elevation directly be-hind, it foUfnvs that in actual drawing tlie plan jnust he verticallybelow the elevation, point for point. This is one of tlie funda-mental principles of projection, and should he thoroughly… … Fi^. 2. line, and the distance of a in front of the vertical plane is equalto the distance of ai in front of the ground line. Applying thisprinciple to Fig. 3, the point represented by a and a must Ije apoint |inch above II and 1 inch in front of V. All points on an object at the same height must…
