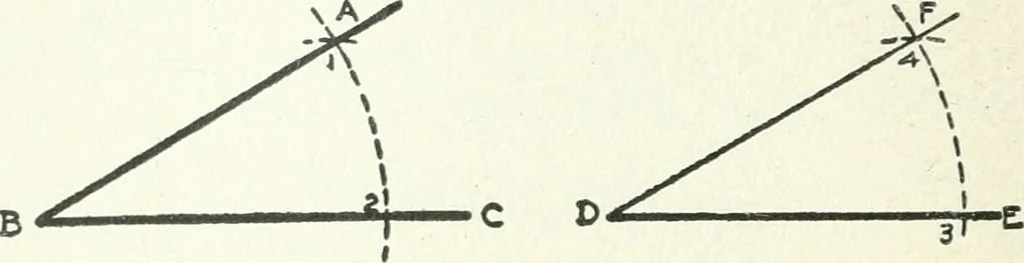

)parallels to 5-B, intersecting AB in points F,E, D, and C, and these points will divide ABinto five equal spaces. PROBLEM 7 To Construct One Angle Equal to Another In Fig. 32, let the angle ABC be the givenone, and let it be required to construct on DEas one side an angle equal to ABC. With Bas… … Fig. 32. Constructing One Angle Equal to Another. center, and draw a short arc through point 1;and with this radius, and 3 as center, draw ashort arc intersecting arc 3F at 4. Then a lineconnecting 4 and D will form with the line DEan angle equal to ABO. PROBLEM 8 To Draw a Oircle through Three…
