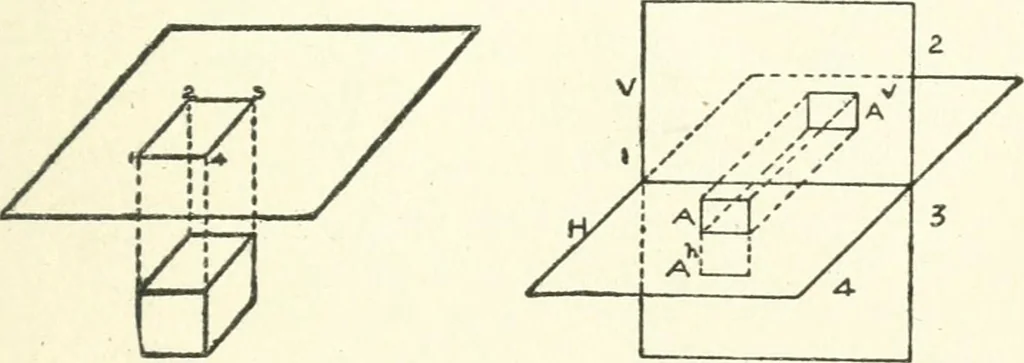

e all construction lines fine, short-dash lineslike those of Fig. B. In Fig. B, the diagonalsneed not be inked. In Fig. C, do not show theconstruction squares in the linish«^d di^awing.In Fig. D, show the axes of the ellipse as con-struction lines. In Fig. E, the diagonals andthe smaller square… … Fig. 40. Illustrating Principles Fig. 41. Illustrating Planes ofof Projection. Projection. Fig. 40. Xow, if parallel lines be di-awn fromthe corners of the cube, and perpendicular tothe plane, these perpendiculars will meet theplane in the points 1, 2, 3, and 4; and lines join-ing these points wHl…
