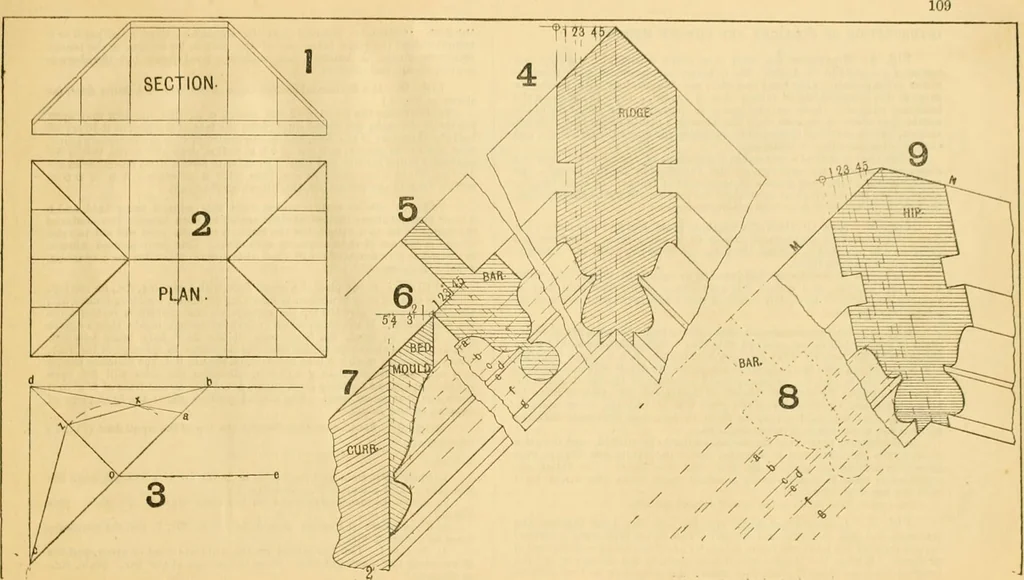

eceive the spars, &c, in addition to a small drip off thoglass. If vertical sides be used and glazed, then it is called a lantern light.Exercises. 1. Determine the true length of the bars. 2. Draw a plan of the underside of a hip at one corner, and thabedmould (Fig. 6) intersecting it; also one… … INTERSECTION OF STRAIGHT AND CURYED MOULDS. Fig. 1. Represents the head of a frame square with the stile, andhaving a quadrant in the angle. The quadrant c represents a bar mouldedto the same pattern as the head and stile, and intersecting with them. Incases of this class the line of intersection…
