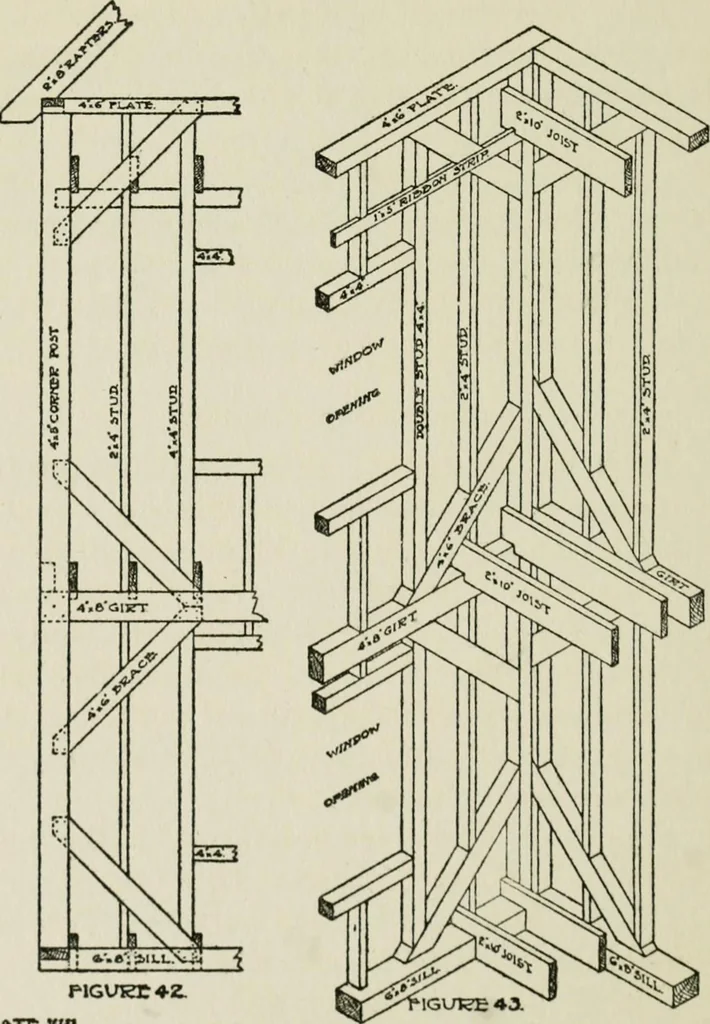

PIGVJKE*0.IP;.ATSW FRJ^^JAIHG, 166 PRACTICAL CARPENTRY are mortised and tenoned into the corner posts andpinned with hardwood pins. The braces are mor-tised and tenoned into the comer posts, sills, girts,and plates, and are pinned with hardwood pins. … F]gi^J^EN(G. PRACTICAL CARPENTRY ^67 The second tier of beams are notched over thegirts, the ribbon strips, or ledger boards, as theyare also called, are notched one inch into thestuds, braces, and posts, and should be well spiked.The third tier of beams should be notched overthis ribbon strip. All…
